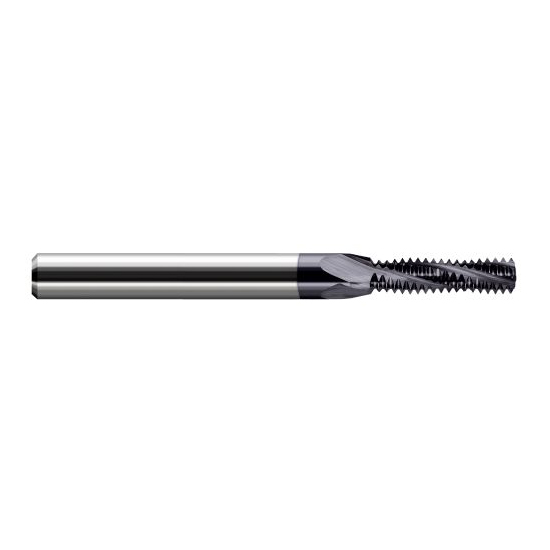

Features
- Designed for deep threaded applications
- Larger cutter diameter for maximum strength
- Due to increased cutting diameter, tools are designed to achieve 60% threads
- Cuts internal 60 Degree UN threads only
- Mills right hand and left hand threads
- Able to cut larger threads of the same pitch
- Helical flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
Size | 5/16-24 |
Milling Diameter (Decimal Inch) | 0.2450" |
Shank Diameter (Decimal Inch) | 0.3125" |
Shank Diameter (Inch) | 5/16" |
Number of Flutes | 3 |
Length of Cut (Decimal Inch) | 0.9580" |
Overall Length (Decimal Inch) | 3.0000" |
Overall Length (Inch) | 3" |
Finish/Coating | AlTiN |
Material | Carbide |
Coolant Through (Yes/No) | No |
Included Angle | 60 Degree |
Single or Double | Single |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Thread Size (Inch):
5/16-24
Cutter Diameter (Decimal Inch):
0.2450"
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Number of Flutes:
3
Length of Cut (Decimal Inch):
0.9580"
Finish/Coating:
AlTiN
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
