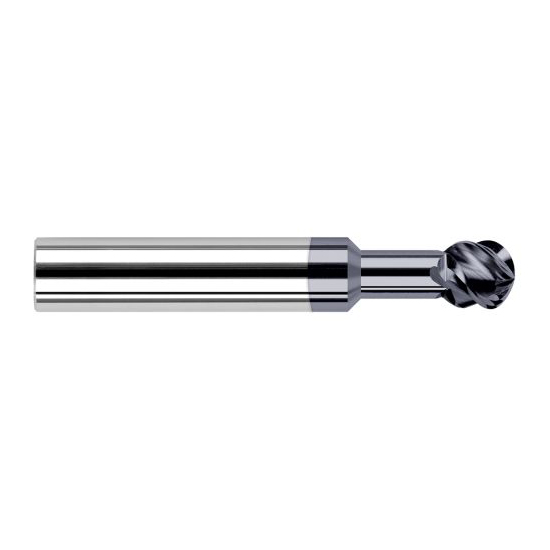

Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250" |
| Mill Diameter (Inch) | 1/8" |
| Neck Diameter (Decimal Inch) | 0.0760" |
| Length Of Cut (Decimal Inch) | 0.1070" |
| Neck Length (Decimal Inch) | 0.5000" |
| Neck Length (Inch) | 1/2" |
| Overall Reach (Decimal Inch) | 0.6070" |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall Length (Inch) | 1-1/2" |
| Radius (Decimal Inch) | 0.0625" |
| Radius (Inch) | 1/16" |
| Wrap Angle | 270 Degree |
| Number of Flutes | 4 |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Coating | AlTiN |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Wrap Angle:
270 Degree
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Length of Cut (Decimal Inch):
0.1070"
Neck Length (Decimal Inch):
0.5000"
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Finish/Coating:
AlTiN
Material:
Carbide
Ships:
From Partner Facility
