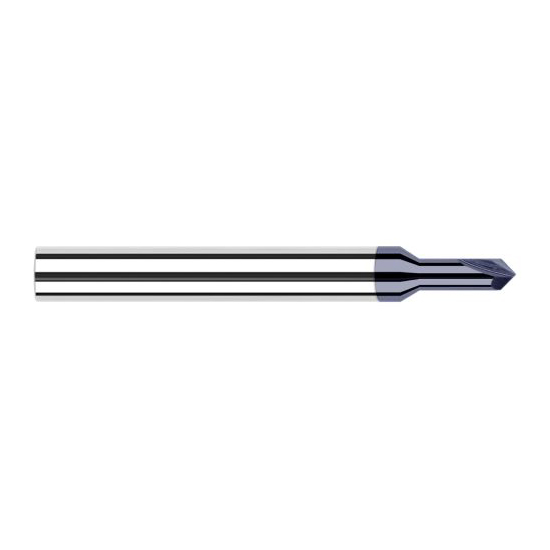

Product Specifications
| Neck Diameter (Decimal Inch) | 0.0310" |
| Neck Diameter (Inch) | 1/32" |
| Length Of Cut (Decimal Inch) | 0.0270" |
| Overall Reach (Decimal Inch) | 0.0930" |
| Overall Reach (Inch) | 3/32" |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall Length (Inch) | 1-1/2" |
| Tip Diameter (Decimal Inch) | 0.0050" |
| Angle Per Side | 30 Degree |
| Included Angle | 60 Degree |
| Number of Flutes | 2 |
| Reach Multiple | 3x |
| Type | I |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | AlTiN |
| Single or Double Angle | Single |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle:
60 Degree
Cutter Head Diameter (Inch):
1/8"
Cutter Head Diameter (mm):
0.1250"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Overall Length (Inch):
1-1/2"
Shank Diameter (Inch):
1/8"
Number of Flutes:
2
End Type:
Single
Overall Reach:
0.0930"
Ships:
From Partner Facility
