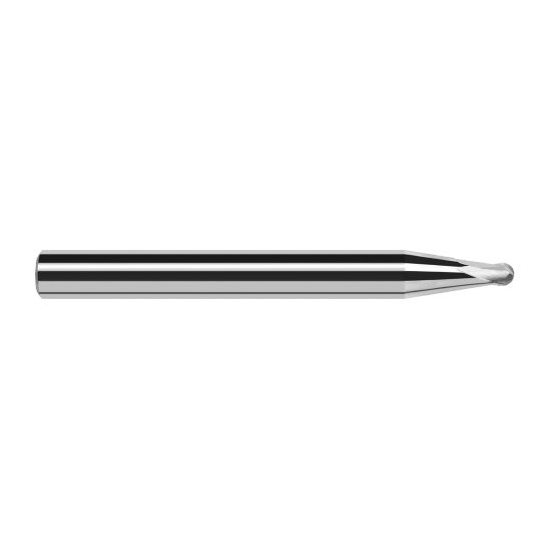

Product Specifications
| Milling Diameter (Inch) | 1/8" |
| Milling Diameter (Decimal Inch) | 0.1250" |
| Number of Flutes | 2 |
| Length Of Cut (Decimal Inch) | 0.1000" |
| Overall Reach (Inch) | 39/64" |
| Overall Reach (Decimal Inch) | 0.6090" |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Single or Double End | Single |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Center Cutting (Yes/No) | Yes |
| Neck Angle | 7 Degrees |
| LOC Multiple | 0.8x |
| Type | II |
| Metric (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Number of Flutes:
2
Length of Cut (Decimal Inch):
0.1000"
Shank Type:
Reduced
Overall Reach (Inch):
39/64"
Overall Reach (Decimal Inch):
0.6090"
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Application:
Aluminum Alloys
Single or Double End:
Single
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Center Cutting:
Yes
