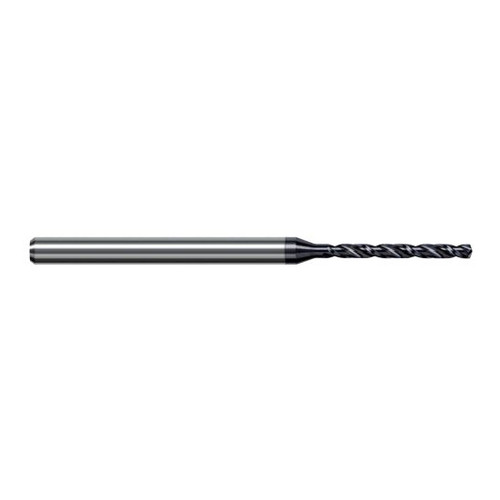

Harvey Tool ARY0240-C6 | 0.610mm Diameter x 3.000mm Shank x 50.000mm OAL 140 Degree Drill Point AlTiN Nano Coated Solid Carbide Micro Drill Bit

$47.30
Ships:
From Partner Facility
Brand:
Harvey Tool
Size (mm):
0.610mm
Drill Point Angle:
140 Degree
Flute Length (mm):
6.000mm
Shank Diameter (mm):
3.000mm
Shank Type:
Straight
Overall Length (mm):
50.000mm
Finish/Coating:
AlTiN Nano
Through Coolant:
No
Material:
Solid Carbide
Application:
Hardened Steels
Ships:
From Partner Facility
SKU:
10102588
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Harvey Tool ARY0240-C6 | 0.610mm Diameter x 3.000mm Shank x 50.000mm OAL 140 Degree Drill Point AlTiN Nano Coated Solid Carbide Micro Drill Bit
Features
  • 140 Degree point angle
  • Specialized flute shape for improved chip evacuation and maximum rigidity
  • Double margin design for exceptional hole accuracy and finish
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Select carbide grade for improved tool life
  • CNC ground in the USA
Product Specifications
Drill Diameter (mm) 0.610mm
Point Angle 140 Degree
Flute Length (mm) 6.000mm
Shank Diameter (mm) 3.000mm
Overall Length (mm) 50.000mm
Finish/Coating AlTiN Nano
Through Coolant No
Material Solid Carbide
Number of Flutes 2
LOC Multiple (8x)
Single or Double Single
End Type Drill Point
