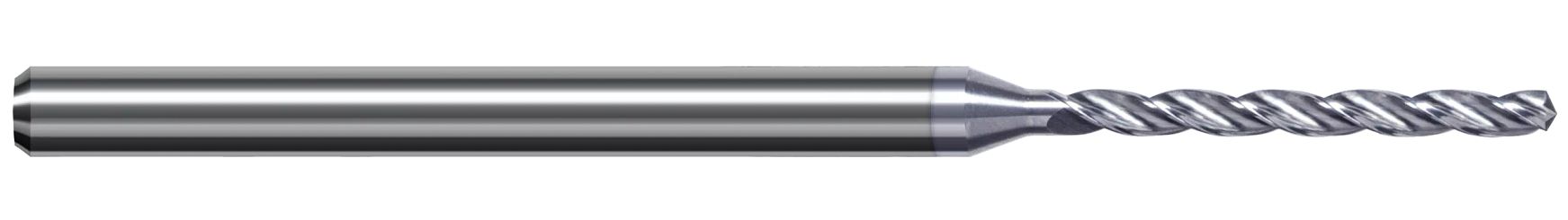

Optimized for drilling aluminum and aluminum alloys with excellent performance in unfilled plastics, copper, brass, and bronze alloys, this comprehensive offering of high performance drills features a special 3 flute design to maximize chip flow, hole accuracy, and finish.
- Special 3 flute design to maximize chip flow, hole accuracy, and finish
- 130 Degree point angle
- Polished flute valleys and TiB2 coating prevent built-up edge and extend tool life
- h6 shank tolerance for high precision tool holders
- Solid carbide
- CNC ground in the USA
Product Specifications
| Drill Diameter (mm) | 6.375 mm |
| Flute Length (mm) | 42.000 mm |
| Overall Length (mm) | 100.000 mm |
| Number of Flutes | 3 |
| Point Angle | 130 |
| LOC Multiple | 5x |
| Shank Diameter (mm) | 8.000 mm |
| Metric | Yes |
| Coating/Finish | C8 |
Technical Files
Safety Data Sheet North America (SDS NA)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Drill Diameter (mm):
6.38mm
Overall Length (mm):
100.00mm
Point Angle:
130 Degree
Number of Flutes:
3
Shank Diameter (mm):
8.00mm
Finish/Coating:
C8
interval quantity:
1
