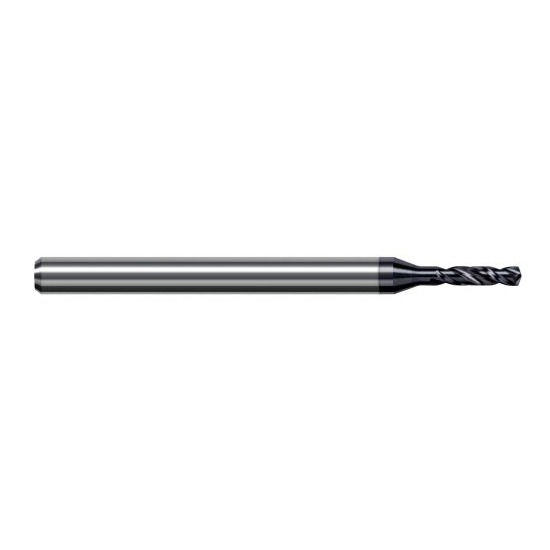

Harvey Tool CSG0937-C6 | 2.381mm Diameter x 4.000mm Shank x 50.000mm OAL 140 Degree Drill Point AlTiN Nano Coated Solid Carbide Micro Drill Bit

$57.90
Ships:
From Partner Facility
Brand:
Harvey Tool
Size (mm):
2.381mm
Drill Point Angle:
140 Degree
Flute Length (mm):
11.500mm
Shank Diameter (mm):
4.000mm
Shank Type:
Straight
Overall Length (mm):
50.000mm
Finish/Coating:
AlTiN Nano
Through Coolant:
No
Material:
Solid Carbide
Application:
Hardened Steels
Ships:
From Partner Facility
interval quantity:
1
SKU:
10102702
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Harvey Tool CSG0937-C6 | 2.381mm Diameter x 4.000mm Shank x 50.000mm OAL 140 Degree Drill Point AlTiN Nano Coated Solid Carbide Micro Drill Bit

Related Products

Features
  • 140 Degree point angle
  • Specialized flute shape for improved chip evacuation and maximum rigidity
  • Double margin design for exceptional hole accuracy and finish
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Select carbide grade for improved tool life
  • CNC ground in the USA
Product Specifications
Drill Diameter (mm) 2.381mm
Point Angle 140 Degree
Flute Length (mm) 11.500mm
Shank Diameter (mm) 4.000mm
Overall Length (mm) 50.000mm
Finish/Coating AlTiN Nano
Through Coolant No
Material Solid Carbide
Number of Flutes 2
LOC Multiple (3x)
Single or Double Single
End Type Drill Point
