Features

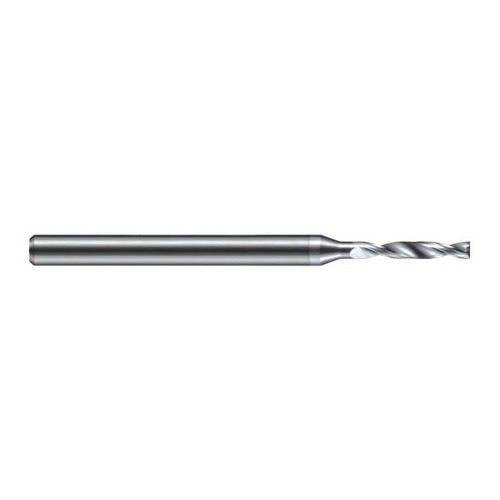

- Flat bottom design (no point angle and no dish) allows for drilling on irregular surfaces and reduces burrs on break through
- Ideal for drilling on inclined and rounded surfaces, creating flat bottom holes, tilted drilling for angled holes, and drilling intersecting holes, half holes, shoulders, or thin plates
- h6 tolerance for high precision tool holders
- Solid carbide
- CNC ground in the USA
Product Specifications
| Drill Diameter (mm) | 5.159mm |
| Point Angle | 180 Degree |
| Flute Length (mm) | 34.000mm |
| Shank Diameter (mm) | 6.000mm |
| Overall Length (mm) | 75.000mm |
| Finish/Coating | TiB2 |
| Through Coolant | No |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| LOC Multiple | (5x) |
| Single or Double | Single |
| End Type | Flat Bottom |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Size (mm):
5.159mm
Drill Point Angle:
180 Degree
Flute Length (mm):
34.000mm
Shank Diameter (mm):
6.000mm
Shank Type:
Straight
Overall Length (mm):
75.000mm
Finish/Coating:
TiB2
Through Coolant:
No
Material:
Solid Carbide
Ships:
From Partner Facility
