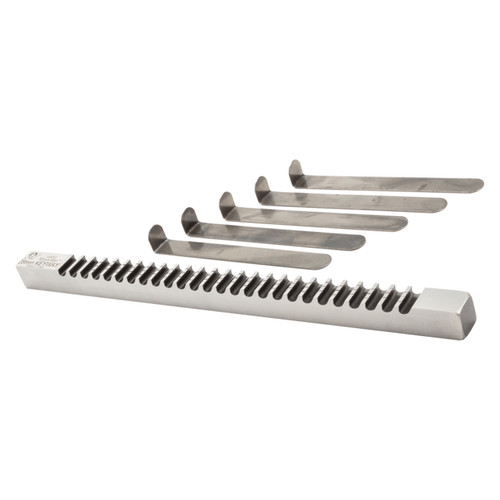

Product Specifications
| Manufacturer Part Number | 11632 |
| Broach Size (mm) | 32.00mm |
| Tolerances (Inch) | 1.2600 -1.2610" |
| Broach Dimensions (Inch) | 1-1/4" x 20-1/4" |
| Shims Required | 5 |
| Minimum Length of Cut (Inch) | 1-1/2" |
| Maximum Length of Cut (Inch) | 8" |
| Pressure Required (lbs) | 20600 lbs. |
| Product Type | Keyway Broach |
