Product Specifications

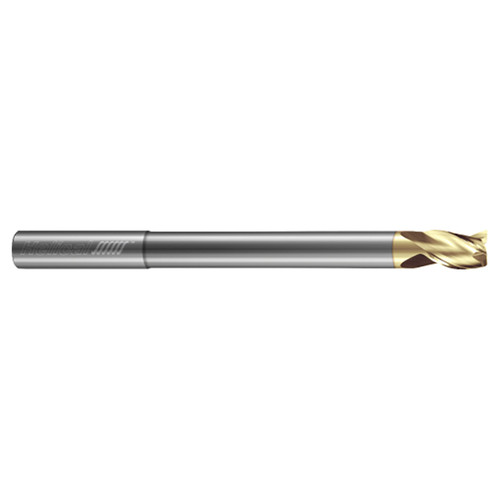

| Tool Description | H35AL-RN-M-30125 |
| Mill Diameter (Inch) | 1/8" |
| Mill Diameter (Decimal Inch) | 0.1250" |
| Number of Flutes | 3 |
| Length of Cut (Decimal Inch) | 0.1563" |
| Material | Solid Carbide |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Finish/Coating | Zplus |
| Overall Reach (Inch) | 3/4" |
| Overall Reach (Decimal Inch) | 0.7500" |
| Center Cutting (Yes/No) | Yes |
| Application | Aluminum |
| Neck Diameter (Decimal Inch) | 0.1180" |
| LOC Multiple | 1x |
| Reach Multiple | 6x |
| Shank Length (Inch) | 2-1/4" |
| Shank Length (Decimal Inch) | 2.2500" |
| Chip Breaker (Yes/No) | No |
| Metric (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Number of Flutes:
3
Length of Cut (Decimal Inch):
0.1563"
Overall Reach (Inch):
3/4"
Overall Reach (Decimal Inch):
0.7500"
Material:
Solid Carbide
Finish/Coating:
Zplus
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Application:
Aluminum
Single or Double End:
Single
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Ships:
From Partner Facility
