Product Specifications

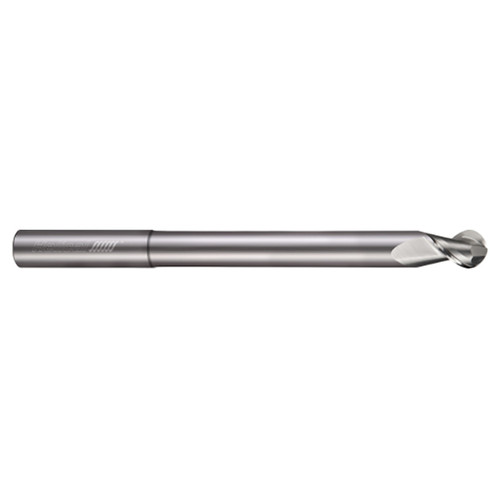

| Tool Description | H45AL-RN-ML-20500-BN |
| Mill Diameter (Inch) | 1/2" |
| Mill Diameter (Decimal Inch) | 0.5000" |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6250" |
| Material | Solid Carbide |
| Overall Length (Inch) | 4-1/2" |
| Overall Length (Decimal Inch) | 4.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Finish/Coating | Uncoated |
| Overall Reach (Inch) | 2-3/4" |
| Overall Reach (Decimal Inch) | 2.7500" |
| Center Cutting (Yes/No) | Yes |
| Application | Aluminum |
| Neck Diameter (Decimal Inch) | 0.4750" |
| LOC Multiple | 1x |
| Reach Multiple | 5x |
| Web Thickness (Decimal Inch) | 0.0070" |
| Shank Length (Inch) | 1-3/4" |
| Shank Length (Decimal Inch) | 1.7500" |
| Chip Breaker (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Number of Flutes:
2
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Material:
Solid Carbide
Overall Length (Inch):
4-1/2"
Overall Length (Decimal Inch):
4.5000"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Finish/Coating:
Uncoated
Single or Double End:
Single
Overall Reach (Inch):
2-3/4"
Overall Reach (Decimal Inch):
2.7500"
Application:
Aluminum
Ships:
From Partner Facility
