Product Specifications

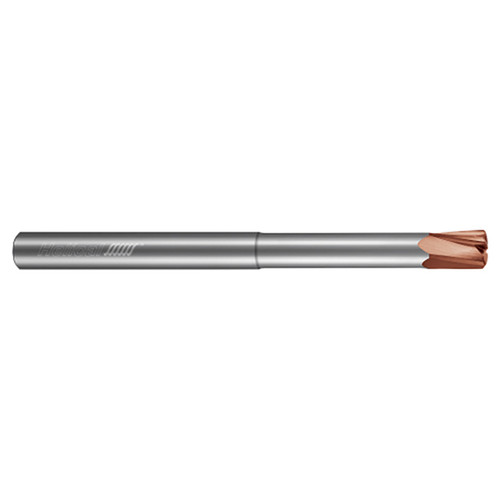

| Tool Description | MHFV-RN-060-40400 |
| Mill Diameter (mm) | 4mm |
| Number of Flutes | 4 |
| Length of Cut (mm) | 4mm |
| Material | Solid Carbide |
| Overall Length (mm) | 63mm |
| Shank Diameter (mm) | 4mm |
| Finish/Coating | Tplus |
| Overall Reach (mm) | 24mm |
| Center Cutting (Yes/No) | No |
| Application | Steels up to 45 Rc |
| NeckDiameter | 3.520mm |
| Corner Radius (mm) | 0.320mm |
| Theoretical Radius (mm) | 0.502mm |
| LOC Multiple | 1x |
| Reach Multiple | 6x |
| Shank Length (mm) | 39mm |
| Chip Breaker (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | Yes |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (mm):
4mm
Number of Flutes:
4
Length of Cut (mm):
4mm
Overall Reach (mm):
24mm
Material:
Solid Carbide
Finish/Coating:
Tplus
Theoretical Radius (mm):
0.502mm
Shank Diameter (mm):
4mm
Application:
Steels up to 45 Rc
Overall Length (mm):
63mm
