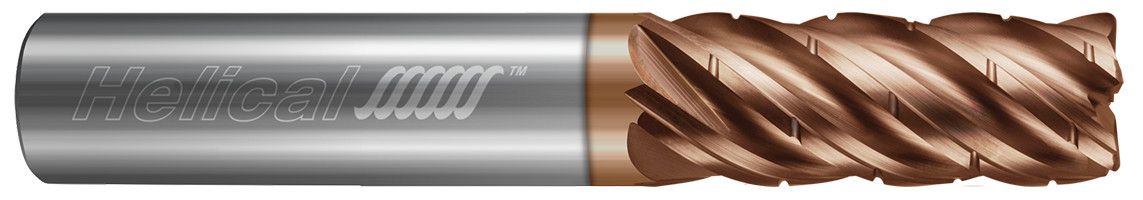

Helical Solutions 83122 |HEV-C-M-50750-R.030 0.7500" (3/4) Cutter DIA x 0.7500" (3/4) Shank DIA x 0.0300" Radius x 2.2500" (2-1/4) Length of Cut x 5.0000" (5) Overall Length Carbide Corner Radius End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEV-C-M-50750-R.030). From the Helical Solutions End Mills for Stainless & High Temp - 5 Flute - Corner Radius - Chipbreaker Rougher - Variable Pitch product family.
Warning: This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm. For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Corner Radius (Decimal Inch):
0.0300"
Number of Flutes:
5
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Length (Inch):
2-3/4"
Shank Length (Decimal Inch):
2.7500"
Finish/Coating:
TPLUS
Center Cutting:
Yes
Through Coolant:
No
interval quantity:
1
