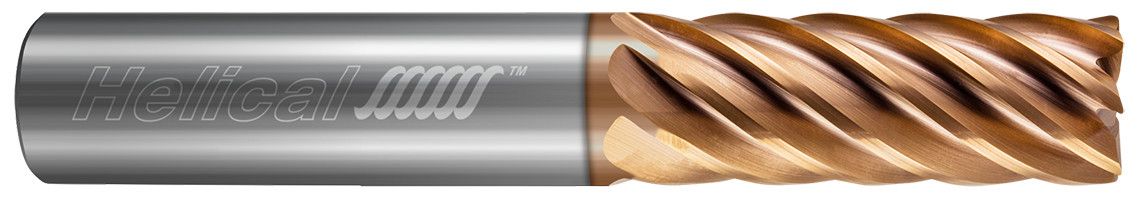

Helical Solutions 83403 |HEV-R-70750-R.060 0.7500" (3/4) Cutter DIA x 0.7500" (3/4) Shank DIA x 0.0600" Radius x 1.6250" (1-5/8) Length of Cut x 4.0000" (4) Overall Length Carbide Corner Radius End Mill for Stainless and High Temp, 7 Flutes, TPLUS Coated - (HEV-R-70750-R.060). From the Helical Solutions End Mills for Stainless & High Temp - 7 Flute - Corner Radius - Variable Pitch product family.
Warning: This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm. For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Corner Radius (Decimal Inch):
0.0600"
Number of Flutes:
7
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Length (Inch):
2-3/8"
Shank Length (Decimal Inch):
2.3750"
Finish/Coating:
TPLUS
Center Cutting:
No
Through Coolant:
No
interval quantity:
1
