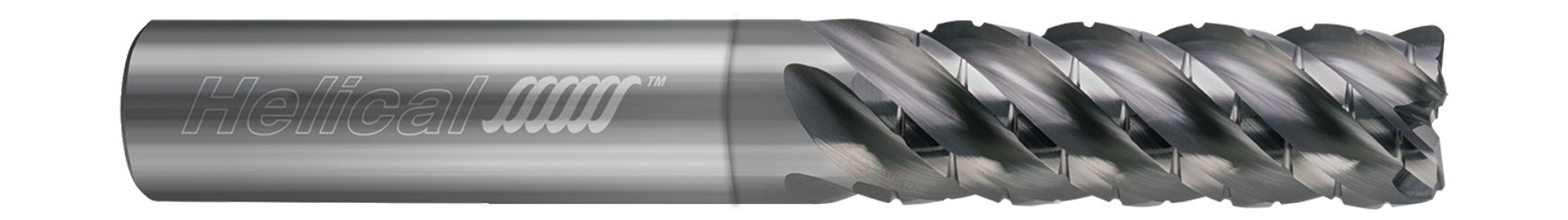

Helical Solutions 84208 | HVAL-C-040-50125-R.030 1/8" Diameter x 1/4" Shank x 1/2" LOC x 2-1/2" OAL x 0.0300" Radius 5 Flute Nplus Coated Solid Carbide Corner Radius End Mill

$33.60
Brand:
Helical Solutions
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.7mm
Finish/Coating:
NPLUS
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
SKU:
25188222
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

This Helical Solutions offering of Chipbreaker Rougher End Mills is engineered for High Efficiency Milling (HEM) in aerospace aluminum alloys, and features CNC tooling with variable pitch and chipbreaker geometry.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys with excellent performance in other non-ferrous alloys
  • Excellent tool life and maximum material removal rates proven through extensive testing
  • Engineered with variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
  • Solid carbide

Product Specifications
Cutter Diameter (Inch)0.1250" (1/8)
Length of Cut (Inch)0.5000" (1/2)
Overall Length (Inch)2.5000" (2-1/2)
Corner Radius (Inch)0.0300"
No of Flutes5
Shank Diameter (Inch)0.2500" (1/4)
Finish/CoatingNPLUS
Center Cutting (Yes/No)Yes
Chip Breaker (Yes/No)Yes
