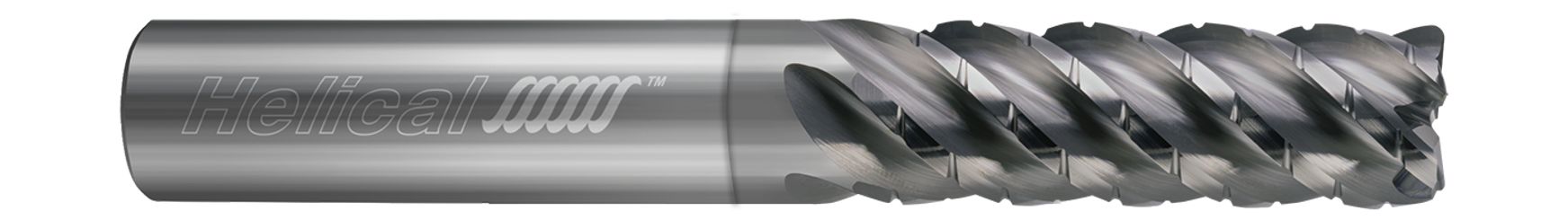

Helical Solutions 84211 | HVAL-C-040-50187-R.010 3/16" Diameter x 1/4" Shank x 3/4" LOC x 2-1/2" OAL x 0.0100" Radius 5 Flute Uncoated Solid Carbide Corner Radius End Mill

$33.90
Brand:
Helical Solutions
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
5
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Finish/Coating:
UN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
SKU:
25187874
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

This Helical Solutions offering of Chipbreaker Rougher End Mills is engineered for High Efficiency Milling (HEM) in aerospace aluminum alloys, and features CNC tooling with variable pitch and chipbreaker geometry.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys with excellent performance in other non-ferrous alloys
  • Excellent tool life and maximum material removal rates proven through extensive testing
  • Engineered with variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
  • Solid carbide

Product Specifications
Cutter Diameter (Inch)0.1875" (3/16)
Length of Cut (Inch)0.7500" (3/4)
Overall Length (Inch)2.5000" (2-1/2)
Corner Radius (Inch)0.0100"
No of Flutes5
Shank Diameter (Inch)0.2500" (1/4)
Finish/CoatingUncoated
Center Cutting (Yes/No)Yes
Chip Breaker (Yes/No)Yes
