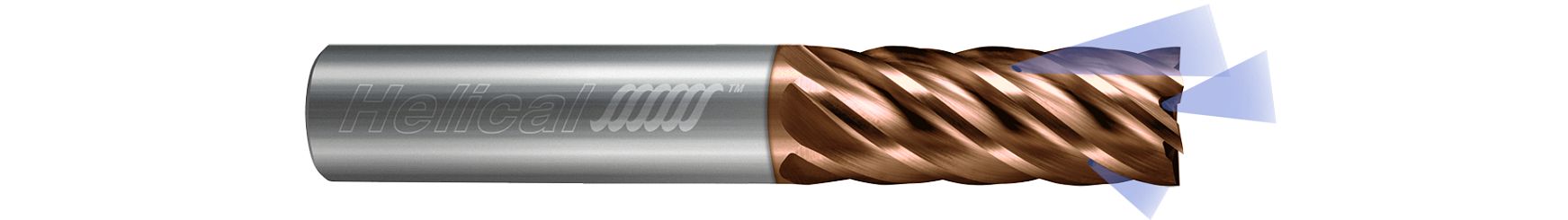

Optimized for light profiling, High Efficiency Milling (HEM), and finishing applications, this Helical Solutions End Mill offering features CNC tooling with variable pitch geometry for finishing in stainless steel, high temp alloys, and other ferrous material.
- Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
- Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
- 6 flute variable pitch design for reduced harmonics and increased feed rates
- Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 1.6250" (1-5/8) |
| Overall Length (Inch) | 4" |
| No of Flutes | 6 |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Finish/Coating | TPLUS |
| Center Cutting (Yes/No) | Yes |
| Coolant Through (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.7mm
Number of Flutes:
6
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Center Cutting:
Yes
