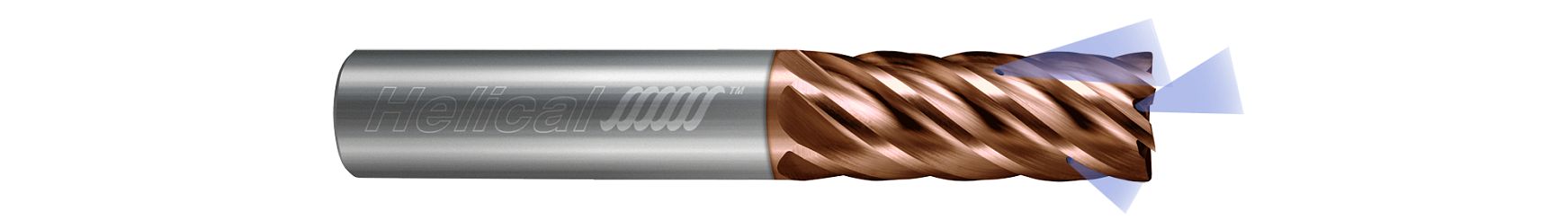

Helical Solutions 84322 | HEVC-032-60500-R.030 1/2" Diameter x 1/2" Shank x 1-5/8" LOC x 4" OAL x 0.0300" Radius 6 Flute Tplus Coated Solid Carbide Corner Radius End Mill

$212.50
Brand:
Helical Solutions
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.7mm
Number of Flutes:
6
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
SKU:
25187962
Weight:
1.23 LBS
Shipping:
Free Shipping
84322

This 6 flute, Variable Pitch End Mill is engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications in stainless steels, high temp alloys, and hardened steels up to 65 Rc.

  • Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
  • Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 6 flute variable pitch design for reduced harmonics and increased feed rates
  • Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.5000" (1/2)
Length of Cut (Inch)1.6250" (1-5/8)
Overall Length (Inch)4"
Corner Radius (Inch)0.0300"
No of Flutes6
Shank Diameter (Inch)0.5000" (1/2)
Finish/CoatingTPLUS
Center Cutting (Yes/No)Yes
Coolant Through (Yes/No)Yes
