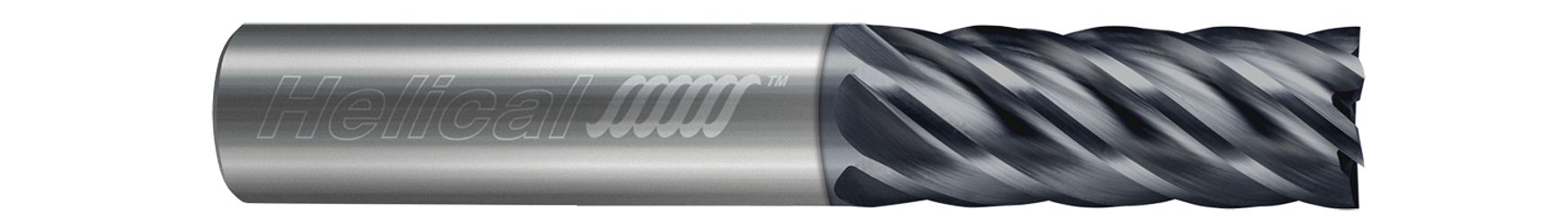

Helical Solutions 84362 | HVTI-020-60125-R.030 1/8" Diameter x 1/4" Shank x 1/4" LOC x 2-1/2" OAL x 0.0300" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$26.60
Brand:
Helical Solutions
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
6
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1/4"
Length of Cut (Decimal Inch):
0.2500"
Length of Cut (mm):
6.35mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
SKU:
25187470
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
84362

Utilize the HVTI-6, Helical Solutions' product line of tooling optimized for Titanium 6Al4V and other titanium alloys, to achieve exceptional performance in High Efficiency Milling (HEM).

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
  • Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
  • Not for use in traditional slotting and roughing toolpaths
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1250" (1/8)
Length of Cut (Inch)0.2500" (1/4)
Overall Length (Inch)2.5000" (2-1/2)
Corner Radius (Inch)0.0300"
No of Flutes6
Shank Diameter (Inch)0.2500" (1/4)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes
