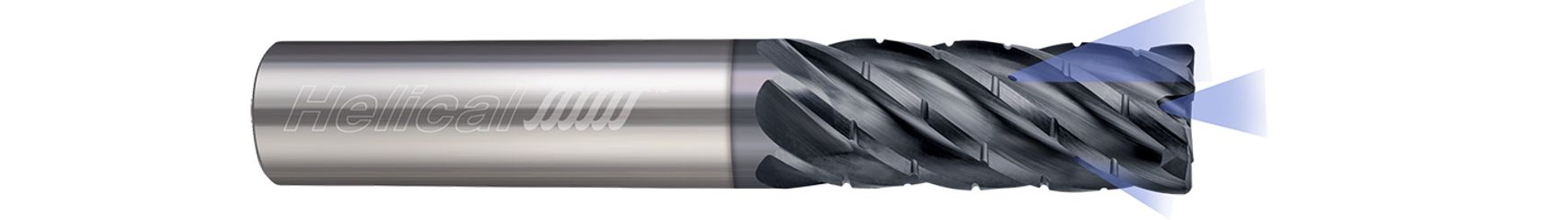

Helical Solutions 84612 | HVTIC-C-013-60375-R.010 3/8" Diameter x 3/8" Shank x 1/2" LOC x 2" OAL x 0.0100" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$130.50
Brand:
Helical Solutions
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
6
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.7mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
SKU:
25188741
Weight:
1.23 LBS
Shipping:
Free Shipping
84612

Optimized for High Efficiency Milling (HEM), this 6 Flute Chipbreaker Rougher features radial coolant holes and variable pitch chipbreaker geometry for reduced heat, enhanced chip evacuation, minimized harmonics, and reduced tool pressure.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
  • 6 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
  • Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
  • Not for use in traditional slotting and roughing toolpaths
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.3750" (3/8)
Length of Cut (Inch)0.5000" (1/2)
Overall Length (Inch)2"
Corner Radius (Inch)0.0100"
No of Flutes6
Shank Diameter (Inch)0.3750" (3/8)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes
Chip Breaker (Yes/No)Yes
Coolant Through (Yes/No)Yes
