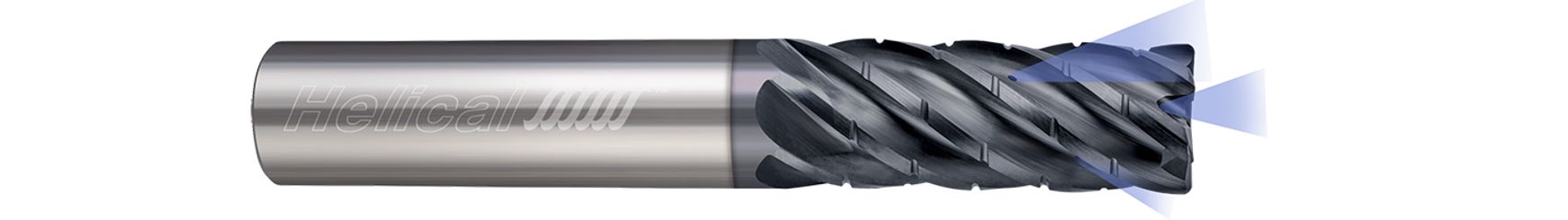

Helical Solutions 84623 | HVTIC-C-030-60750-R.030 3/4" Diameter x 3/4" Shank x 2-1/4" LOC x 5" OAL x 0.0300" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$325.00
Brand:
Helical Solutions
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
6
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127mm
SKU:
25187882
Weight:
1.23 LBS
Shipping:
Free Shipping
84623

Optimized for High Efficiency Milling (HEM), this 6 Flute Chipbreaker Rougher features radial coolant holes and variable pitch chipbreaker geometry for reduced heat, enhanced chip evacuation, minimized harmonics, and reduced tool pressure.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
  • 6 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
  • Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
  • Not for use in traditional slotting and roughing toolpaths
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.7500" (3/4)
Length of Cut (Inch)2.2500" (2-1/4)
Overall Length (Inch)5"
Corner Radius (Inch)0.0300"
No of Flutes6
Shank Diameter (Inch)0.7500" (3/4)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes
Chip Breaker (Yes/No)Yes
Coolant Through (Yes/No)Yes
