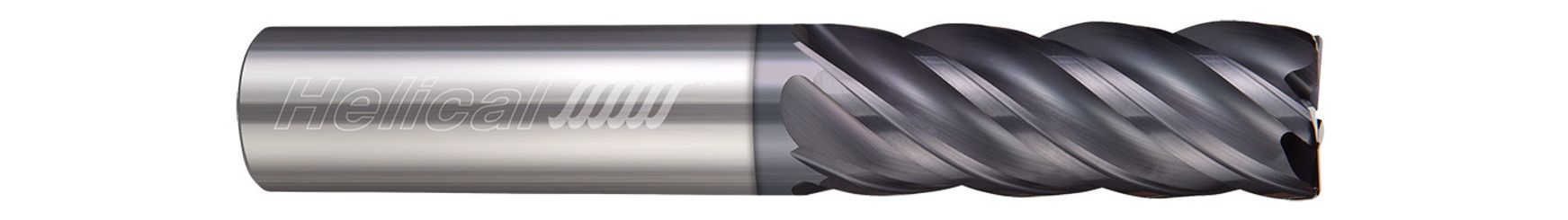

Helical Solutions 84656 | HEV-LX-50375-R.030 3/8" Diameter x 3/8" Shank x 2" LOC x 4" OAL x 0.0300" Radius 5 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$70.50
Brand:
Helical Solutions
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Length of Cut (mm):
50.8mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
SKU:
25187539
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
84656

The 5 flute design of the HEV-5 provides a significant lift in tool life and productivity, while increasing feed rates over 4-fluted tools. Its variable pitch geometry, high flute count, and Aplus coating make it excel in tough materials like steels, tool steels, cast iron, titanium, and titanium alloys.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, cast iron, titanium, and titanium alloys
  • Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 5 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.3750" (3/8)
Length of Cut (Inch) 2"
Overall Length (Inch) 4"
Corner Radius (Inch) 0.0300"
No of Flutes 5
Shank Diameter (Inch) 0.3750" (3/8)
Finish/Coating APLUS
Center Cutting (Yes/No) Yes
