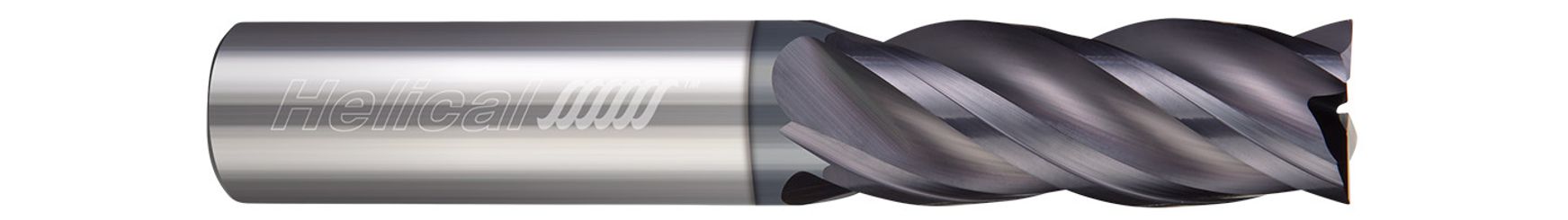

The HSV-4's variable pitch geometry effectively decreases chatter and harmonics, allowing it to leave a better part finish and last longer in your spindle. Featuring eccentric relief for maximum edge strength and Aplus coating for improved performance in tough materials, this tool is a strong choice for a variety of applications.
- Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Engineered with eccentric relief for maximum edge strength in both roughing and finishing applications
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Length of Cut (Inch) | 4" |
| Overall Length (Inch) | 6.5000" (6-1/2) |
| Corner Radius (Inch) | 0.3750" (3/8) |
| No of Flutes | 4 |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Length of Cut (Inch):
4"
Length of Cut (Decimal Inch):
4.0000"
Overall Length (Inch):
6-1/2"
Overall Length (Decimal Inch):
6.5000"
Number of Flutes:
4
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Length (Inch):
2-1/2"
Shank Length (Decimal Inch):
2.5000"
Finish/Coating:
Aplus
Center Cutting:
Yes
Through Coolant:
No
