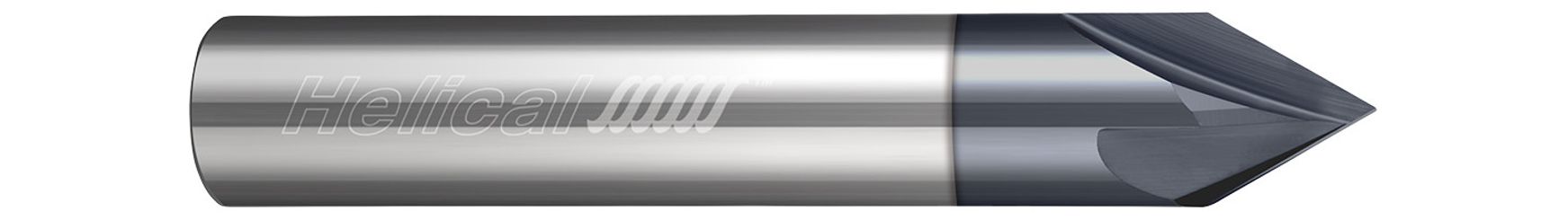

These chamfer mills are available in 2 and 4 flutes for soft and hard materials. They are ground with a positive axial rake and clearance and are available uncoated and Aplus coated for optimal performance and wear resistance.
- Designed for universal chamfering applications
- Offered with 2 and 4 flutes for soft and hard materials
- Ground with positive axial rake and clearance for optimal performance
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Length of Cut (Inch) | 0.3120" (5/16) |
| Overall Length (Inch) | 3" |
| Tip (Inch) | 0.0430" |
| Included Angle | 90 |
| No of Flutes | 4 |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Finish/Coating | APLUS |
| Center Cutting | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Milling Diameter (Inch):
1/4"
Milling Diameter (Decimal Inch):
0.2500"
Milling Diameter (mm):
6.35mm
Number of Flutes:
4
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"""
Shank Diameter (mm):
12.7mm
Finish/Coating:
APLUS
