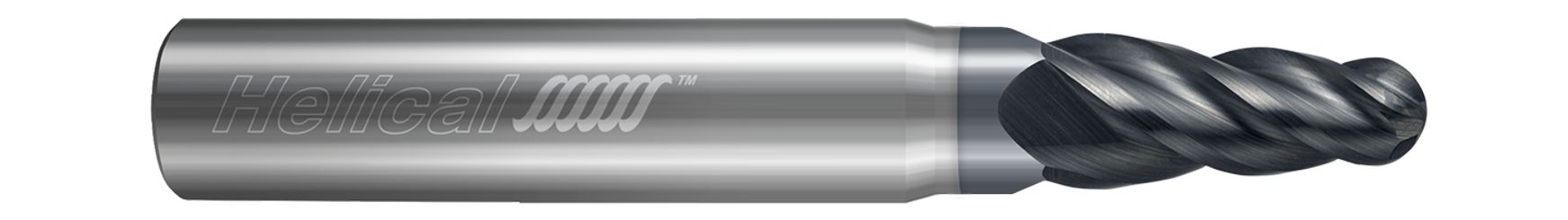

Helical Solutions 84889 | HTPR010-050-40125-BN 1/8" Diameter x 3/16" Shank x 5/8" LOC x 2" OAL 4 Flute Aplus Coated Solid Carbide Ball End Mill

$31.60
Brand:
Helical Solutions
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1250"
Neck Diameter (Decimal Inch):
0.1467"
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Overall Reach (Inch):
3/4"
Overall Reach (Decimal Inch):
0.7500"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Included Angle:
2 Degree
Number of Flutes:
4
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Length (Inch):
1-1/4"
Shank Length (Decimal Inch):
1.2500"
Finish/Coating:
Aplus
Center Cutting:
Yes
Through Coolant:
No
interval quantity:
1
SKU:
25187940
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
84857

Related Products

This 4 Flute Ball End Mill features a tapered profile, designed for light profiling and finishing applications in mold and die pockets and other tapered wall applications, and a variable pitch design for increased feed rates and reduced harmonics.

  • Tapered profile designed for use in mold and die pockets and other tapered wall applications
  • Engineered for excellent performance in light profiling and finishing applications
  • 4 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1250" (1/8)
Length of Cut (Inch)0.6250" (5/8)
Overall Length (Inch)2"
Corner Radius (Inch)0.0620" (1/16)
Included Angle2
No of Flutes4
Shank Diameter (Inch)0.1875" (3/16)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes
