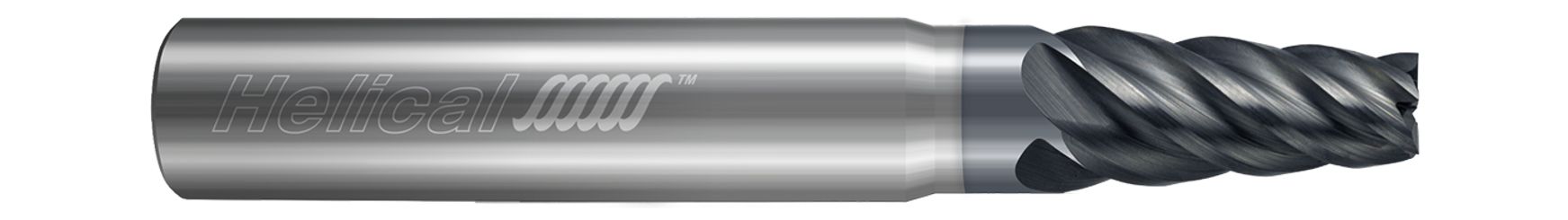

Engineered for excellent performance in light profiling and finishing applications, this 5 Flute Variable Pitch End Mill has a tapered profile designed to use in mold and die pockets and other tapered wall applications.
- Tapered profile designed for use in mold and die pockets and other tapered wall applications
- Engineered for excellent performance in light profiling and finishing applications
- 5 flute variable pitch design for reduced harmonics and increased feed rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Length of Cut (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Included Angle | 2 |
| No of Flutes | 5 |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
5
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Center Cutting:
Yes
