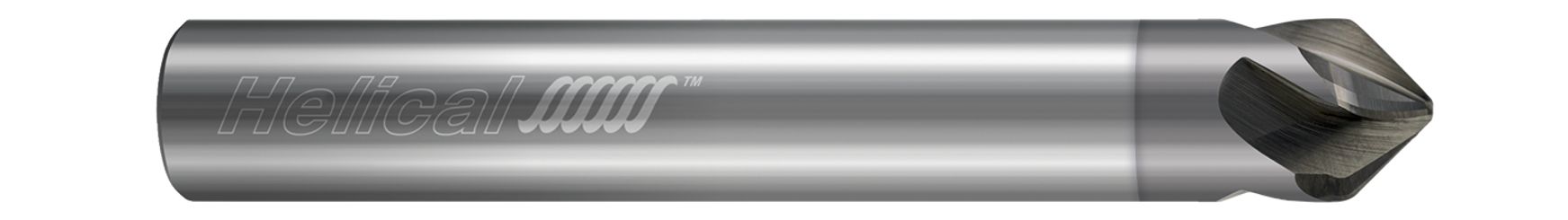

Helical Solutions 86295 | HMAF-AL-40625-08-T15 5/8" Diameter x 5/8" Shank x 3" OAL x 30 Degree Included Angle 4 Flute Nplus Coated Solid Carbide Chamfer Mill

$273.40
Brand:
Helical Solutions
Cutter Head Diameter (Inch):
5/8"
Cutter Head Diameter (Decimal Inch):
0.6250"
Cutter Head Diameter (mm):
15.88mm
Included Angle A:
30
Finish/Coating:
NPLUS
Overall Length (Inch):
3.0000"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
4"
SKU:
25188225
Weight:
1.23 LBS
Shipping:
Free Shipping

CNC ground in the USA, this solid carbide, 4 Flute Taper Form Multi-Axis Finisher features three targential radii offered in a variety of angles to provide maximum performance and optimal clearance for any aluminum workpiece.

  • Specially defined profile for massive reductions in cycle time and vastly improved surface finish
  • Taper form with three tangential radii offered in a variety of angles for maximum performance and optimal clearance angle for any workpiece
  • 4 flute geometry specifically designed for finishing in aluminum and non-ferrous alloys
  • Center cutting
  • Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.6250" (5/8)
Length of Cut (Inch)0.9834"
Overall Length (Inch)3"
Corner Radius (Inch)0.3125" (5/16)
Included Angle30
No of Flutes4
Shank Diameter (Inch)0.6250" (5/8)
Finish/CoatingNPLUS
Center Cutting (Yes/No)Yes
