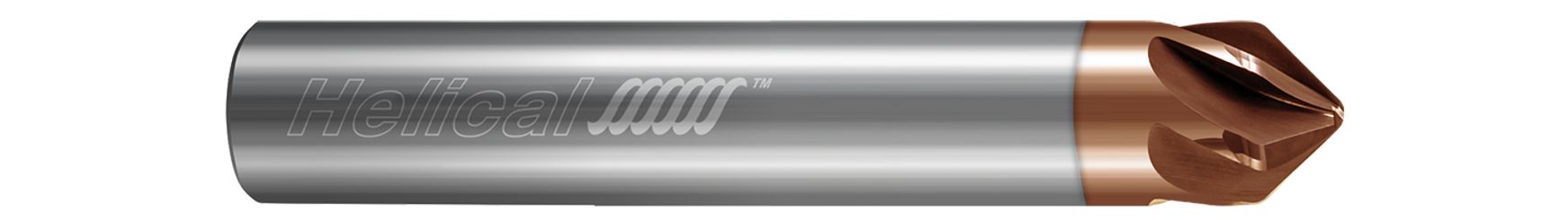

Achieve massive cycle time reduction and vastly improved surface finish with this fully stocked Helical Solutions selection of Multi Axis Finishers, which feature End Mills with a taper form with three tangential radii.
- Specially defined profile for massive reductions in cycle time and vastly improved surface finish
- Taper form with three tangential radii and offered in a variety of angles for maximum performance and optimal clearance angle for any workpiece
- 6 flute geometry specifically designed for finishing in stainless steel, high temperature alloys, and other ferrous materials
- Center cutting
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Length of Cut (Inch) | 0.1875" (3/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Corner Radius (Inch) | 0.0469" (3/64) |
| Included Angle | 90 |
| No of Flutes | 6 |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Finish/Coating | TPLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Head Diameter (Inch):
3/8"
Cutter Head Diameter (Decimal Inch):
0.3750"
Cutter Head Diameter (mm):
9.53mm
Included Angle A:
90
Finish/Coating:
TPLUS
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.5mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
6"
