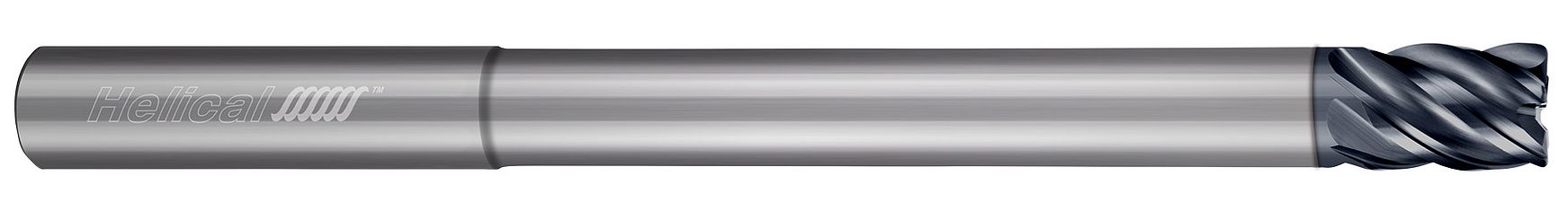

Helical Solutions 86390 | HEV-RN-R-50312-R.030 5/16" Diameter x 5/16" Shank x 7/16" LOC x 4" OAL x 0.0300" Radius 5 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$62.80
Brand:
Helical Solutions
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Mill Diameter (mm):
7.94mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4375"
Length of Cut (mm):
11.11mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
SKU:
25187791
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
86390

The 5 flute design of the HEV-RN-5 provides a significant lift in tool life and productivity, while increasing feed rate 20 percent over a 4-fluted tool. Its variable pitch geometry and strong core work in tandem with the reduced neck to make this tool capable of excelling in long reach applications in tough materials.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 5 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.3125" (5/16)
Neck Diameter (Inch)0.2960"
Length of Cut (Inch)0.4375" (7/16)
Overall Reach (Inch)1.1250" (1-1/8)
Overall Length (Inch)4"
Corner Radius (Inch)0.0300"
No of Flutes5
Shank Diameter (Inch)0.3125" (5/16)
Finish/CoatingAPLUS
Center Cutting (Yes/No)Yes
