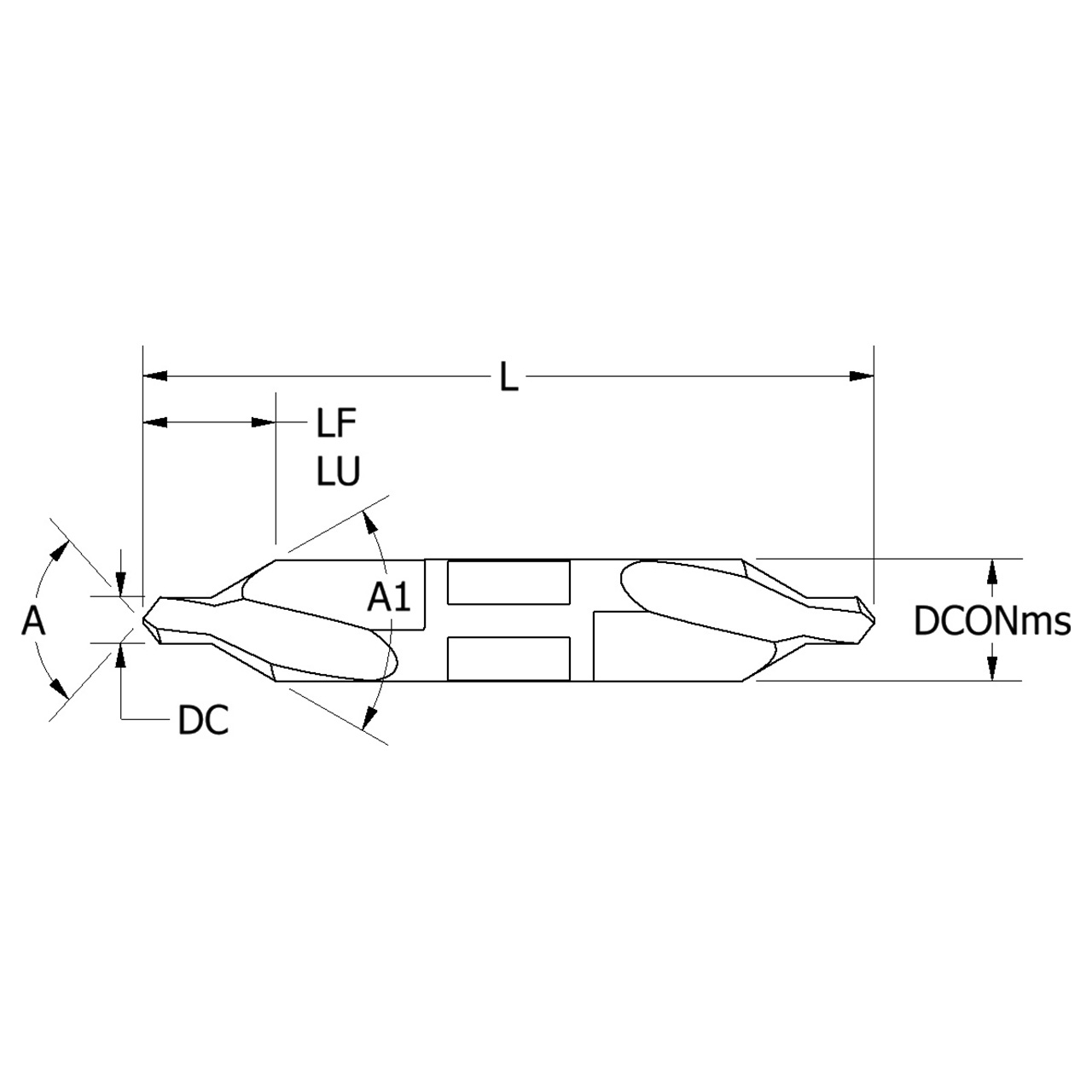

Product Specifications
| Manufacturer Part Number | 906-000-141 |
| Cutting Diameter (Decimal Inch) | 0.219" |
| Connection Diameter (Decimal Inch) | 0.500" |
| Overall Length (Decimal Inch) | 3.000" |
| Functional Length (Decimal Inch) | 0.517" |
| Usable Length (Decimal Inch) | 0.517" |
| Cutting Edge Count | 2 |
| Included Angle (Degree) | 118 Degree |
| Included Angle 1 (Degree) | 60 Degree |
| Cutting Direction | Right Hand |
| Material | HSS |
| Coating | TiN |
| Connection Type | Shank |
| Product Type | Combination Drill & Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Keo
Drill Point Diameter (Inch):
7/32"
Drill Point Diameter (Decimal Inch):
0.2190"
Drill Point Diameter (mm):
5.56mm
Included Angle:
118 Degree
Material:
HSS
Finish/Coating:
TiN
Cutting Direction:
Right Hand
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
interval quantity:
1
