Product Specifications

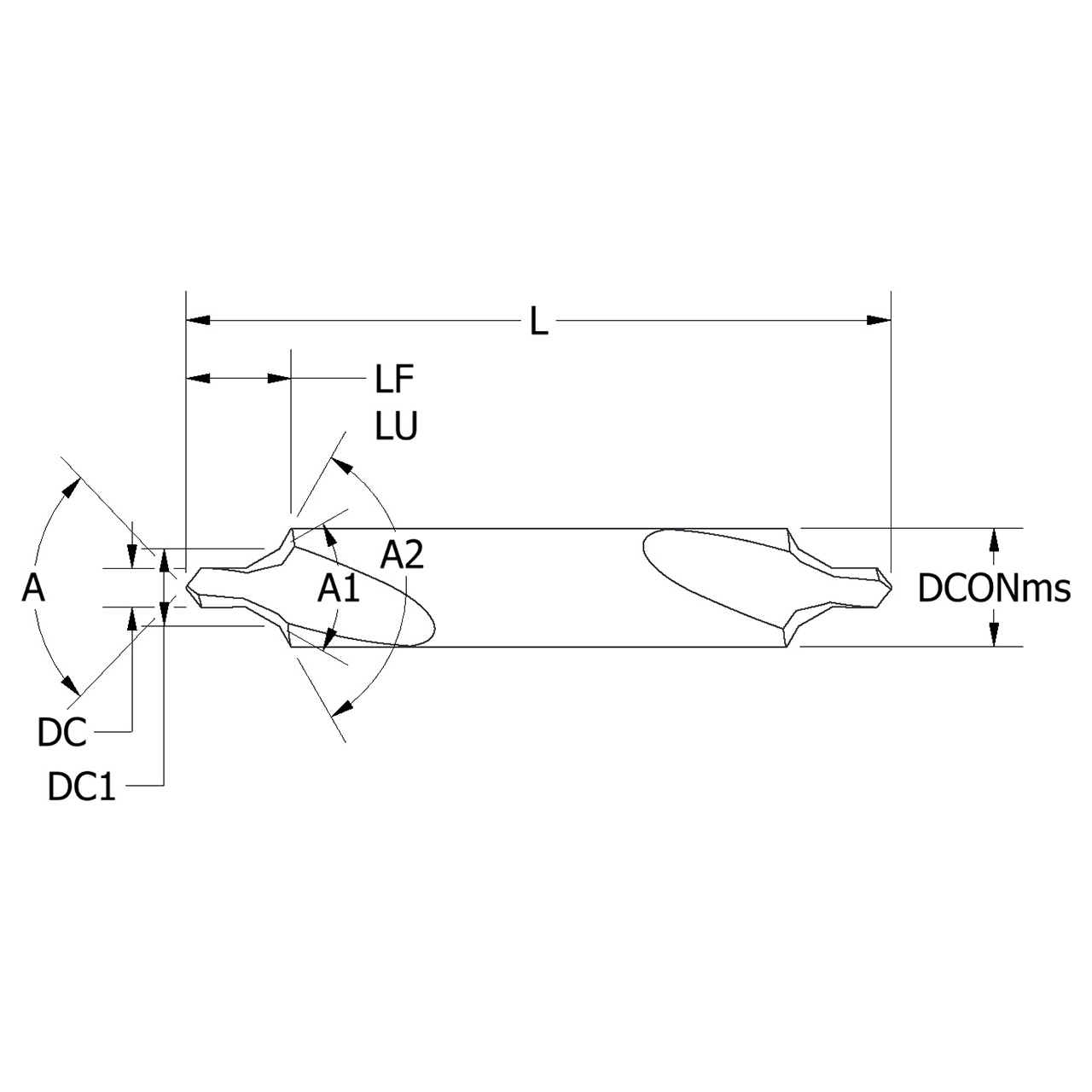

| Manufacturer Part Number | 906-000-245 |
| Cutting Diameter (Decimal Inch) | 0.156" |
| Cutting Diameter 1 (Decimal Inch) | 0.350" |
| Connection Diameter (Decimal Inch) | 0.438" |
| Overall Length (Decimal Inch) | 2.750" |
| Functional Length (Decimal Inch) | 0.388" |
| Length of Shank (Decimal Inch) | 1.375" |
| Usable Length (Decimal Inch) | 0.388" |
| Cutting Edge Count | 2 |
| Included Angle (Degree) | 118 Degree |
| Included Angle 1 (Degree) | 60 Degree |
| Included Angle 2 (Degree) | 120 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Connection Type | Shank |
| Product Type | Combination Drill & Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Keo
Drill Point Diameter (Inch):
5/32"
Drill Point Diameter (Decimal Inch):
0.1560"
Drill Point Diameter (mm):
3.96mm
Included Angle:
118 Degree
Material:
HSS-E
Cutting Direction:
Right Hand
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
