Keo 906-001-098 | 0.156" Diameter x 1.375" Shank Length x 2.750" OAL TiN Coated T-15 Combination Drill & Countersink

$56.72 $49.91
(You save $6.81)
Brand:
Keo
Drill Point Diameter (Inch):
5/32"
Drill Point Diameter (Decimal Inch):
0.1560"
Drill Point Diameter (mm):
3.96mm
Included Angle:
118 Degree
Material:
T-15
Finish/Coating:
TiN
Cutting Direction:
Right Hand
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
interval quantity:
1
SKU:
10319309
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Keo 906-001-098 | 0.156" Diameter x 1.375" Shank Length x 2.750" OAL TiN Coated T-15 Combination Drill & Countersink

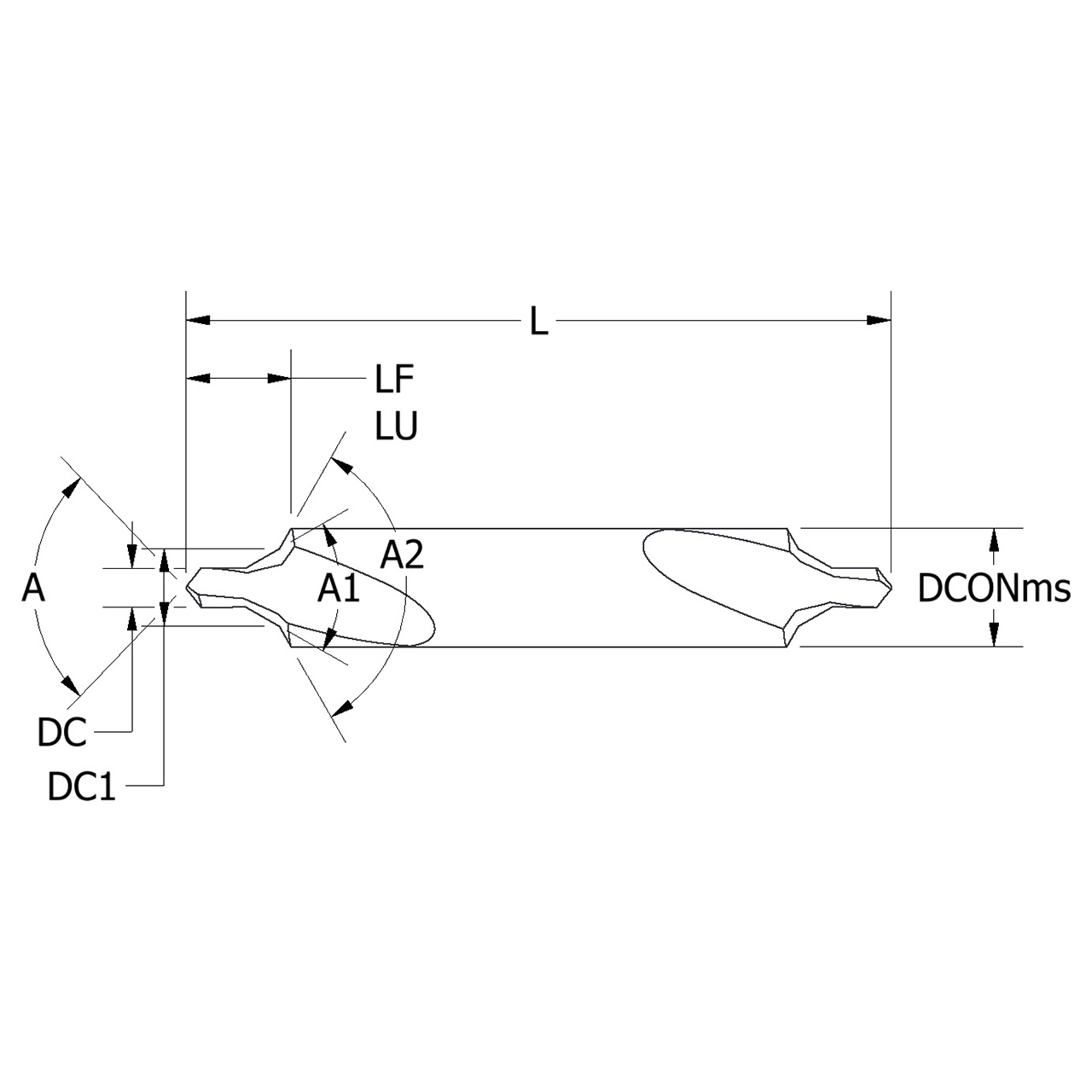

Product Specifications
Manufacturer Part Number906-001-098
Cutting Diameter (Decimal Inch)0.156"
Cutting Diameter 1 (Decimal Inch)0.350"
Connection Diameter (Decimal Inch)0.438"
Overall Length (Decimal Inch)2.750"
Functional Length (Decimal Inch)0.388"
Length of Shank (Decimal Inch)1.375"
Usable Length (Decimal Inch)0.388"
Cutting Edge Count2
Included Angle (Degree)118 Degree
Included Angle 1 (Degree)60 Degree
Included Angle 2 (Degree)120 Degree
Cutting DirectionRight Hand
MaterialT-15
CoatingTiN
Connection TypeShank
Product TypeCombination Drill & Countersink
