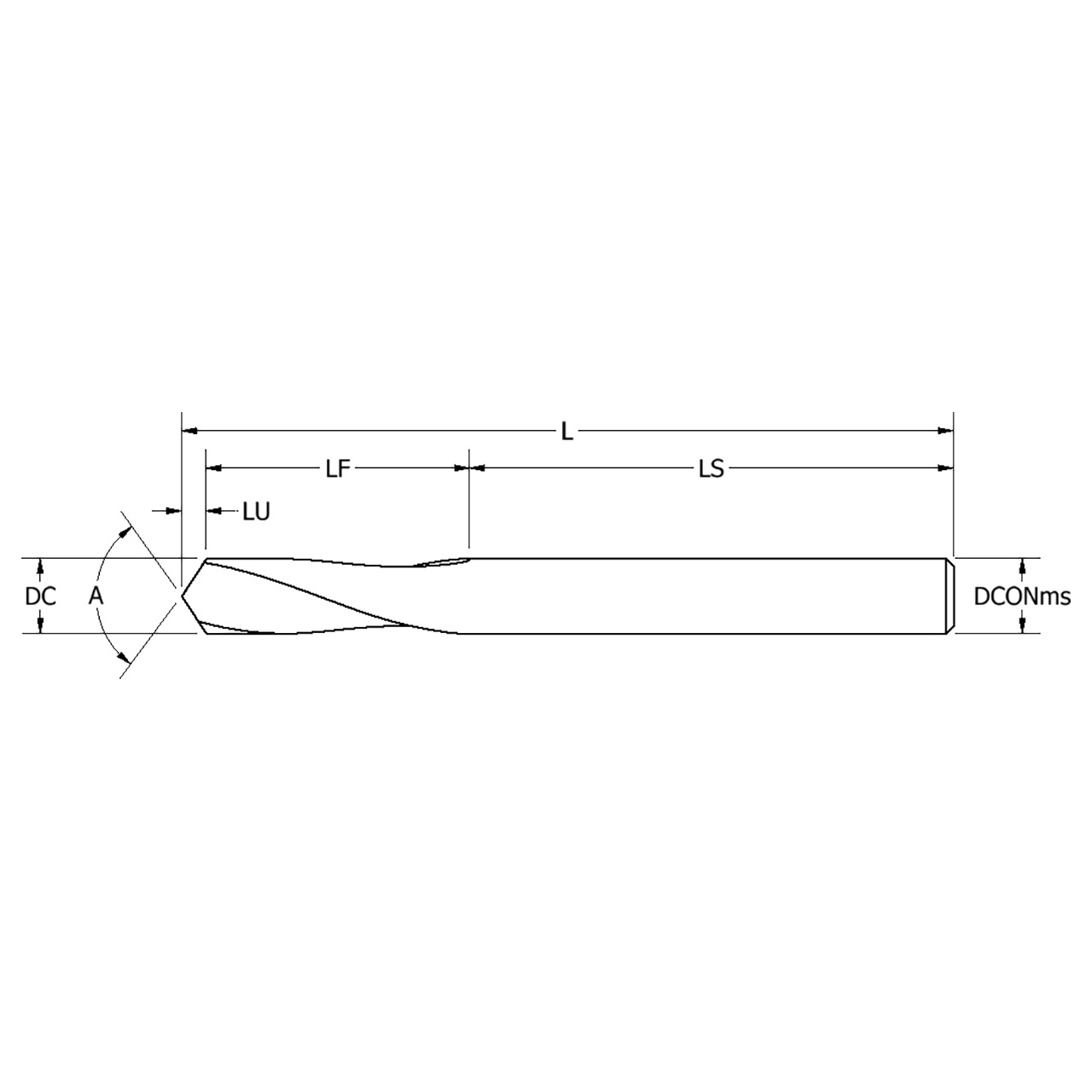

Product Specifications
| Manufacturer Part Number | 956-000-637 |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Connection Diameter (Decimal Inch) | 0.313" |
| Overall Length (Decimal Inch) | 2.500" |
| Functional Length (Decimal Inch) | 0.705" |
| Length of Shank (Decimal Inch) | 1.750" |
| Usable Length (Decimal Inch) | 0.045" |
| Cutting Edge Count | 2 |
| Included Angle (Degree) | 118 Degree |
| Connection Type | Shank |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Coating | TiN |
| Product Type | Spotting Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Keo
Material:
Carbide
Finish/Coating:
TiN
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
