Product Specifications

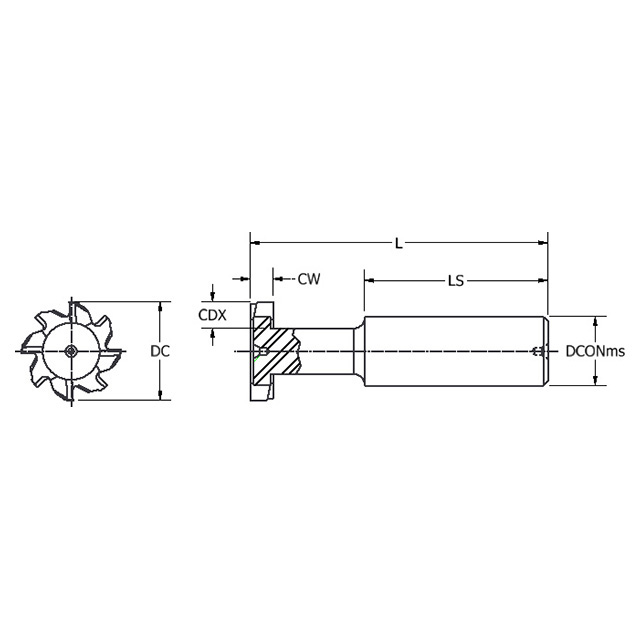

| Manufacturer Part Number | 964-000-048 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Connection Diameter (Decimal Inch) | 0.750" |
| Hub Diameter (Decimal Inch) | 1.500" |
| Overall Length (Decimal Inch) | 3.125" |
| Length of Shank (Decimal Inch) | 2.031" |
| Cutting Edge Count | 8 |
| Maximum Depth of Cut (Decimal Inch) | 0.250" |
| Cutting Width (Decimal Inch) | 0.094" |
| Connection Type | Shank |
| Cutting Direction | Right Hand |
| Material | HSS |
| Coating | TiN |
| Product Type | T-slot Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Keo
Cutting Diameter (Inch):
1"
Cutting Diameter (Decimal Inch):
1.0000"
Cutting Diameter (mm):
25.40mm
Cutting Width (Inch):
3/32"
Cutting Width (Decimal Inch):
0.0941"
Cutting Width (mm):
2.39mm
Overall Length (Inch):
3-1/8"
Overall Length (Decimal Inch):
3.1250"
Overall Length (mm):
79.38mm
Material:
HSS
Finish/Coating:
TiN
