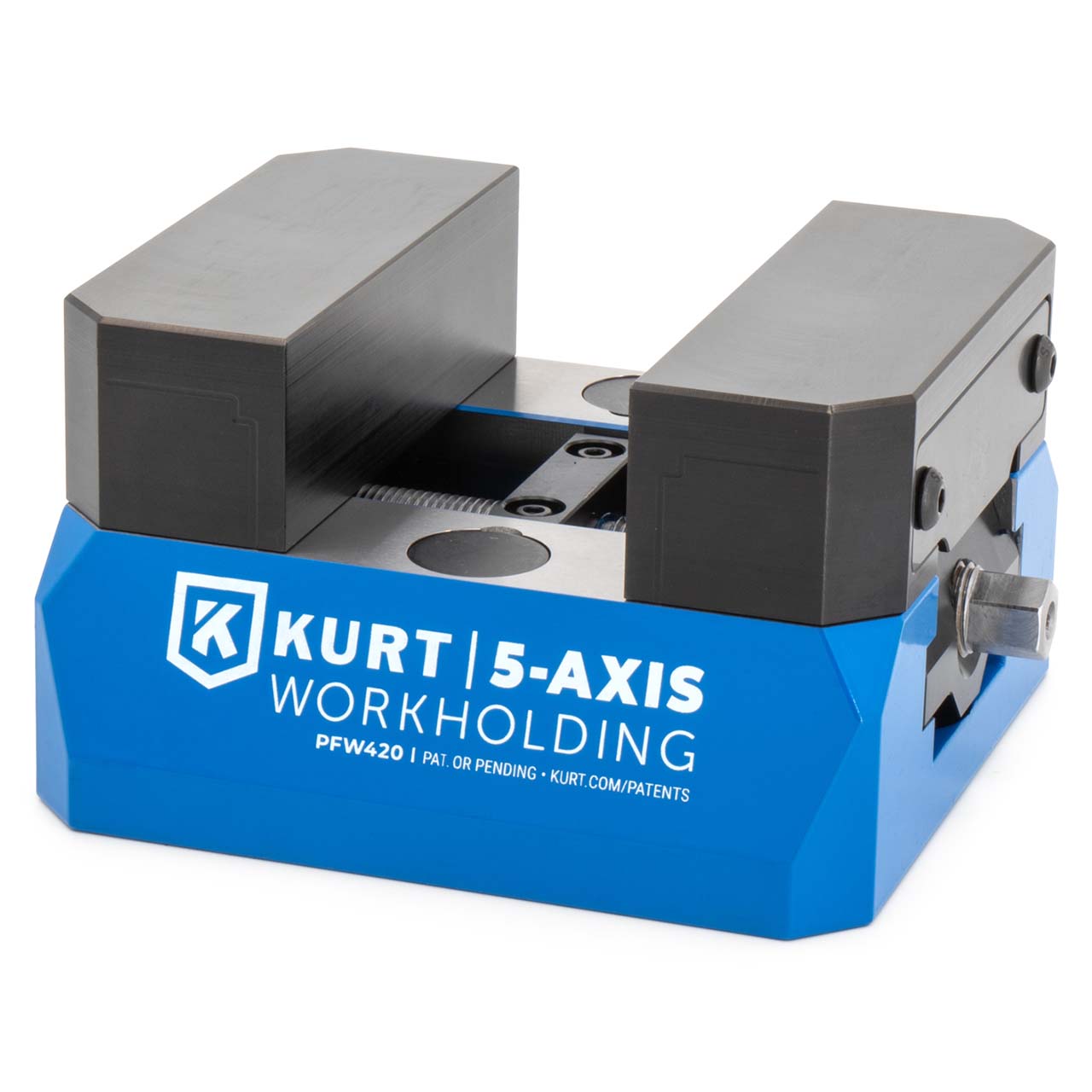

Kurt PFW420 | 5-Axis 96.00mm Spacing Machine Vise

New Kurt 96mm 5-Axis Vises

Introducing the New Kurt PFW420 5-Axis 96mm vise. Featuring three vise-body sizes, our new wide-body design allows mounting using a 96mm pull-stud pattern on Kurt zero-point quick-release pallets. Kurt 5-Axis vises allow maximum part accessibility for done-in-1 machining operations on 3-, 4-, or 5-axis machines. User-friendly features include quick-change mechanisms, spring-loaded gibs, quick-lash adjustment, hexes on both ends of the vise, and side-body pull stud locations for robotic machine tending and pick and place.

PFW Vise Features

The new Quick Lash Adjustment makes center-line movement fast and efficient, keeping parts perfectly positioned and allowing vises in the field to operate longer with less downtime through the usual wear and break-in periods. New spring-loaded gibs keep parts square and are designed to maximize part-positioning repeatability through multiple cycles. Kurt’s PFW420, PFW440, and PFW460 vises are ideal for any 3, 4, or 5-axis machines milling small- to medium-sized parts. PFW-series 5-axis vises feature the patented Kurt AngLock design to minimize lift and deflection. The proven AngLock design naturally pushes the vise down and forward, allowing much greater surface contact on parts—maximizing holding strength with less clamp force.

Features:

• Quick-change, snap-on/off mechanisms
• Anglock design minimizes lift
• High clamping force
• Spring-loaded gibs for squareness
• Easy center-line adjustment
• Quick lash adjustment
• Hex on both ends of screw, can be adjusted from either side
• 96mm pull stud pattern spacing for zero-point pallet systems
• End effector ready for automation integration
• Max torque 45 foot pounds

Dimensional Data

Clamping Force Pounds
