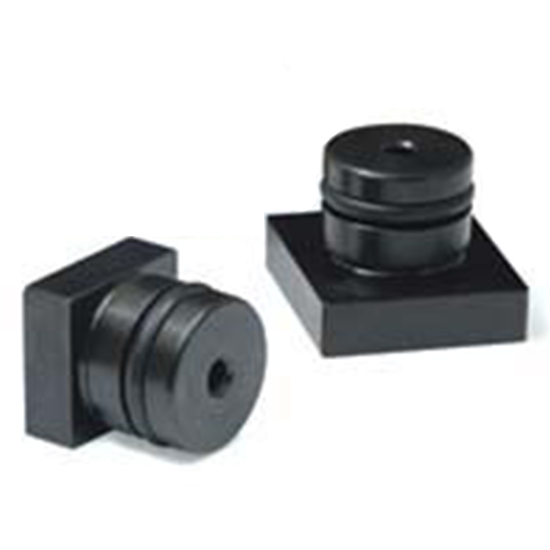

Kurt SKOAM20.22 | 20mm x 22mm Vise Sine Key - Pair

Description

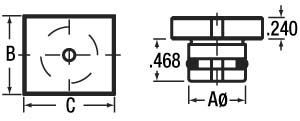

The Kurt SKOAM20.22 sine key pair is a metric, non-expandable O-ring-style locating key sold in matched pairs for precise alignment in vise setups. Each SKOAM20.22 key is made with strict dimensional tolerances to ensure consistent workholding and precise vise alignment during machining tasks. This 20mm x 22mm sine key pair is designed for applications requiring accurate part indexing and repeatable setup to reduce rework and cycle time. The design is non-expandable to ensure radial stability and location under clamp loads commonly encountered in milling and drilling. Technicians and Maintenance personnel will find the Kurt vise sine key pair straightforward to install and inspect during preventive maintenance. Material selection and machining ensure that the keys resist wear while maintaining the datum relationships required for precision work. The SKOAM20.22 is ideal for jigging, fixture alignment, and high-repeatability fixturing tasks that require a compact, metric sine key solution. Dimensions: B = 20 mm, C = 22 mm, A (Theta) = 0.625". Each set contains two pieces for matched-pair performance.

Product Features and Benefits

Matched metric sine key pair for repeatable locating

Sold in pairs and finished to tight tolerances, the Kurt SKOAM20.22 ensures consistent datum contact for repeatable setups.

Non-expandable O-ring style for stable positioning

The non-expandable O-ring configuration prevents radial growth under load, preserving vise alignment and reducing part movement.

Compact 20mm × 22mm form factor

This 20 mm x 22 mm sine key (pair) has a small footprint, making it ideal for use in confined vise jaws while still providing sufficient contact area for secure workholding and locating.

Durable machined construction for long service life

Precision machining and material selection reduce wear and help maintain accurate locating features over repeated cycles.

Direct fit for Kurt vise locating applications

Designed for use as a Kurt vise sine key pair, it integrates cleanly with existing locating grooves and standard vise tooling.

2 pieces of a Non-expandable O-Ring Style (Metric) sold in pairs.

Frequently Asked Questions

Are these non-expandable O-ring sine key 20×22 mm items suitable for precision vise alignment?

Yes, the SKOAM20.22 non-expandable O-ring sine keys are made for precision vise alignment and repeatable locating.

Can the Kurt vise sine key pair be used as a workholding locating key in fixture setups?

Yes, the SKOAM20.22 keys are intended as workholding locating keys and integrate into standard vise jaws and fixtures.

Do these keys function as vise alignment keys for Kurt and similar vises?

Yes, they serve as vise alignment keys (vise alignment keys / vise locating keys) for Kurt-style locating grooves.

Are these sold as a matched pair for consistent datum and wear compensation?

Yes, the product is sold in matched pairs to ensure consistent datum contact and repeatable setup across cycles.
