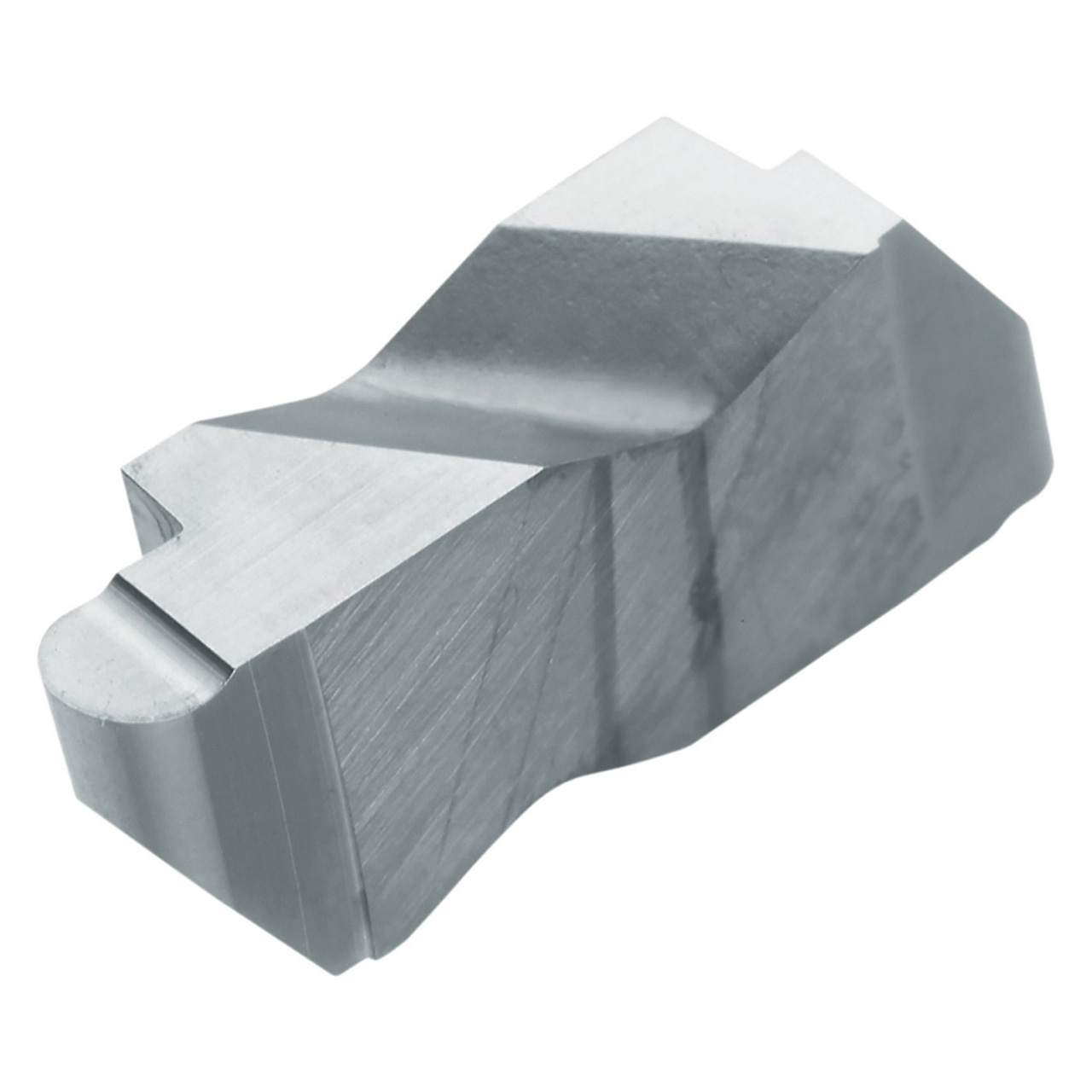

Kyocera Precision Tools 8864081 | KCRP3031R TN60 0.0618" Cutting width x 0.8098" Insert Length Uncoated Cermet Grooving Insert

$17.95
Brand:
Kyocera Precision Tools
Insert Style:
KCRP
Insert Size:
3031
Material:
Cermet;Cutting Width (Decimal Inch)=0.0618"""
Cutting Width (mm):
1.57mm
Maximum Depth of Cut (Decimal Inch):
0.0941"
Maximum Depth of Cut (mm):
2.39mm
Manufacturer's Grade:
TN60
Finish/Coating:
Uncoated
SKU:
23222241
Weight:
0.25 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

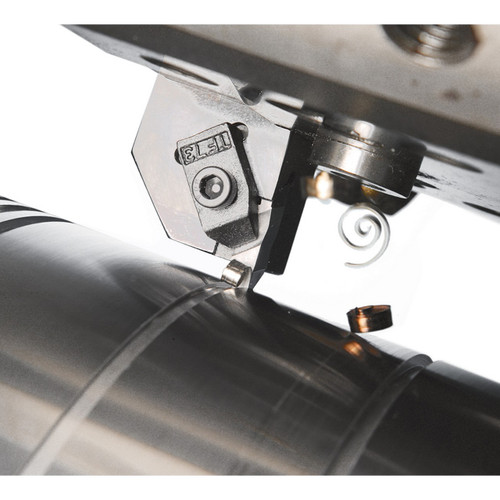

  • Insert for external grooving, internal large diameter shallow grooving
  • 2 Cutting edges
  • General purpose cermet with superior wear resistance and toughness
  • Application: Cutting of steel and stainless steel

Product Specifications
Tool Number8864081
Max Depth of Cut (Decimal Inch)0.0941"
Max Depth of Cut (mm)2.39mm
Cutting Width (Decimal Inch)0.0618"
Cutting Width (mm)1.57mm
Cutting Width Minimum (Decimal Inch)0.0618"
Cutting Width Minimum (mm)1.57mm
Cutting Width Maximum (Decimal Inch)0.0618"
Cutting Width Maximum (mm)1.57mm
Insert Length (Decimal Inch)0.8098"
Insert Length (mm)20.57mm
Corner Radius (Inch)0.031"
Corner Radius (mm)0.79mm
Thickness (Inch)0.344"
Thickness (mm)8.74mm
ApplicationExternal Grooving | Internal Large Diameter Shallow Grooving
Coating ProcessUncoated
Cutting RangeFinishing
Full RadiusYes
HandRight Hand
Insert Holding MethodClamp
Insert GradeTN60
Insert Size3031
MaterialCermet
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
