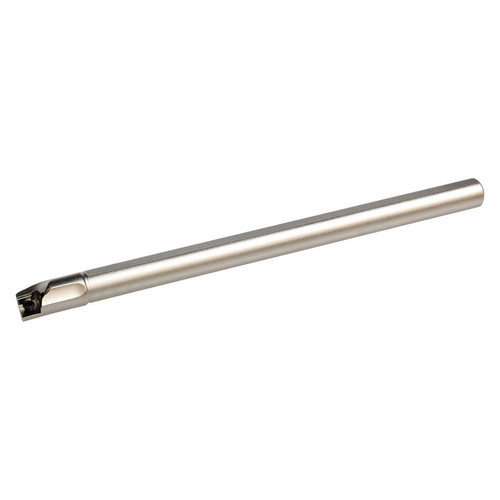

Features:
- Firmly clamps the insert in two directions with a single action maintaining good contact between the shim and the insert even during high feed rates
- Adjustable coolant discharge for various applications and insert types
- Improved insert position accuracy with greater insert life
- Improved machining stability
- Increased clamping rigidity
Product Specifications
EDP Number | OTM87663 |
Maximum Depth of Cut (mm) | 0.30mm |
Connection Diameter (Decimal Inch) | 1.0000" |
Connection Diameter (mm) | 25.40mm |
Minimum Bore Diameter (Decimal Inch) | 1.2500" |
Minimum Bore Diameter (mm) | 31.75mm |
Shank Height (Decimal Inch) | 0.9051" |
Shank Height (mm) | 22.99mm |
Tool Entering Angle ( Degree) | 95 Degree |
Application | Boring | Internal Facing |
Bar Type | Steel Shank |
Coolant Through (Yes/No) | Yes |
Hand | Right Hand |
Insert Holding Method | Double Clamp |
Insert Shape | 80 Degree Diamond |
Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
A...DCLN
Series:
DBCB;Minimum Bore Diameter (Decimal Inch)=1.2500"""
Minimum Bore Diameter (mm):
31.75mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Through Coolant:
Yes
