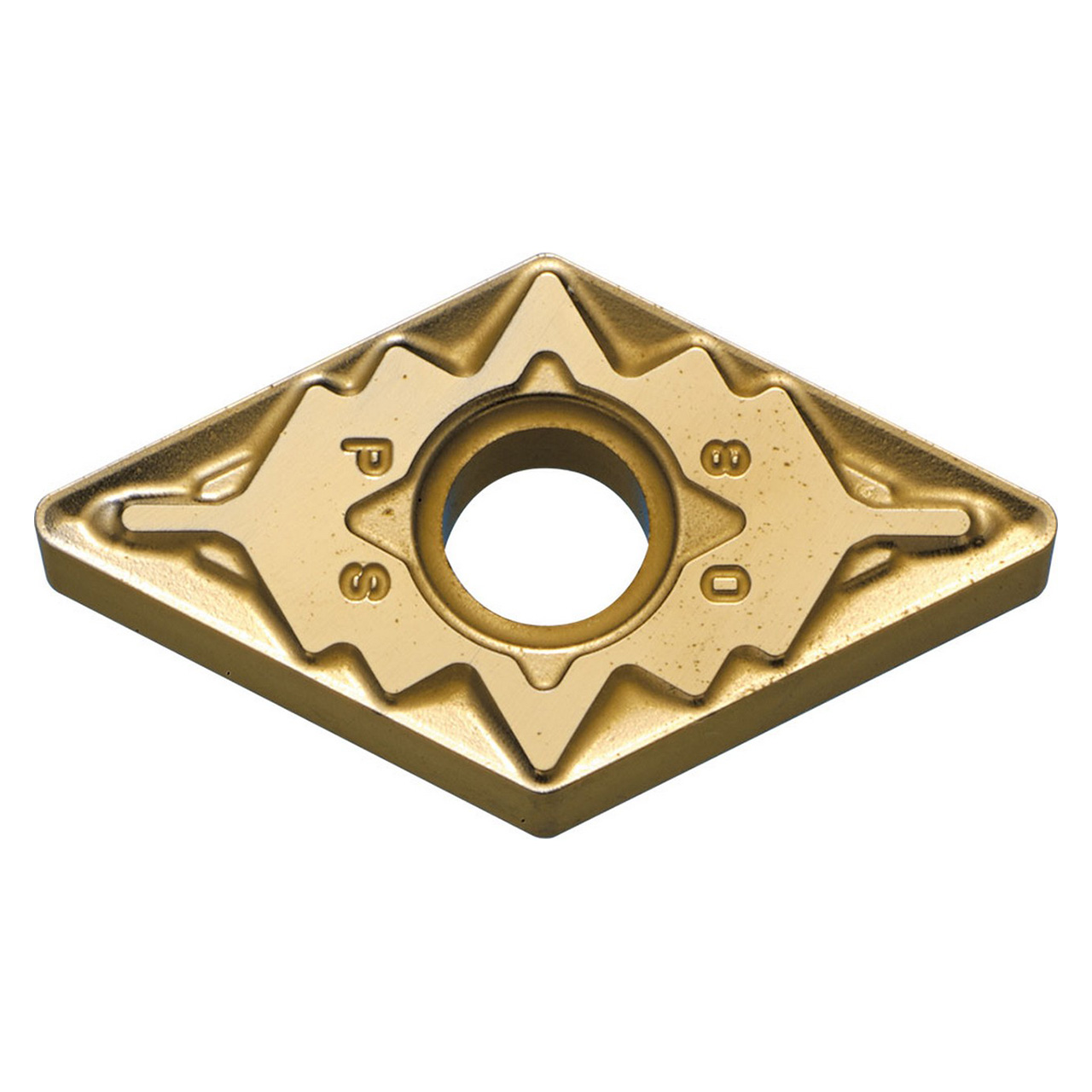

Kyocera Precision Tools TAC02156 | DNMG432PS CA525 1/2" Circle Diameter x 3/16" Thickness CVD Coated Carbide Indexable Turning Insert

$12.09
Brand:
Kyocera Precision Tools
Insert Style:
DNMG
Insert Size:
432
Material:
Carbide;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
CA525
SKU:
23223760
Weight:
0.29 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, copying, boring
  • 4 Cutting edges
  • Special substrate and tough coating film provides high wear and fracture resistance
  • Application: First choice for steel machining

Product Specifications
EDP NumberTAC02156
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationBoring | Copying | External Turning
ChipbreakerPS
Coating ProcessCVD
Cutting RangeMedium Roughing
HandNeutral
Insert GradeCA525
Insert Holding MethodScrew or Clamp
Insert Shape55 Degree Diamond
Insert Included Angle ( Degree)55 Degree
Insert Size432
MaterialCarbide
Number of Cutting Edges4
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption
