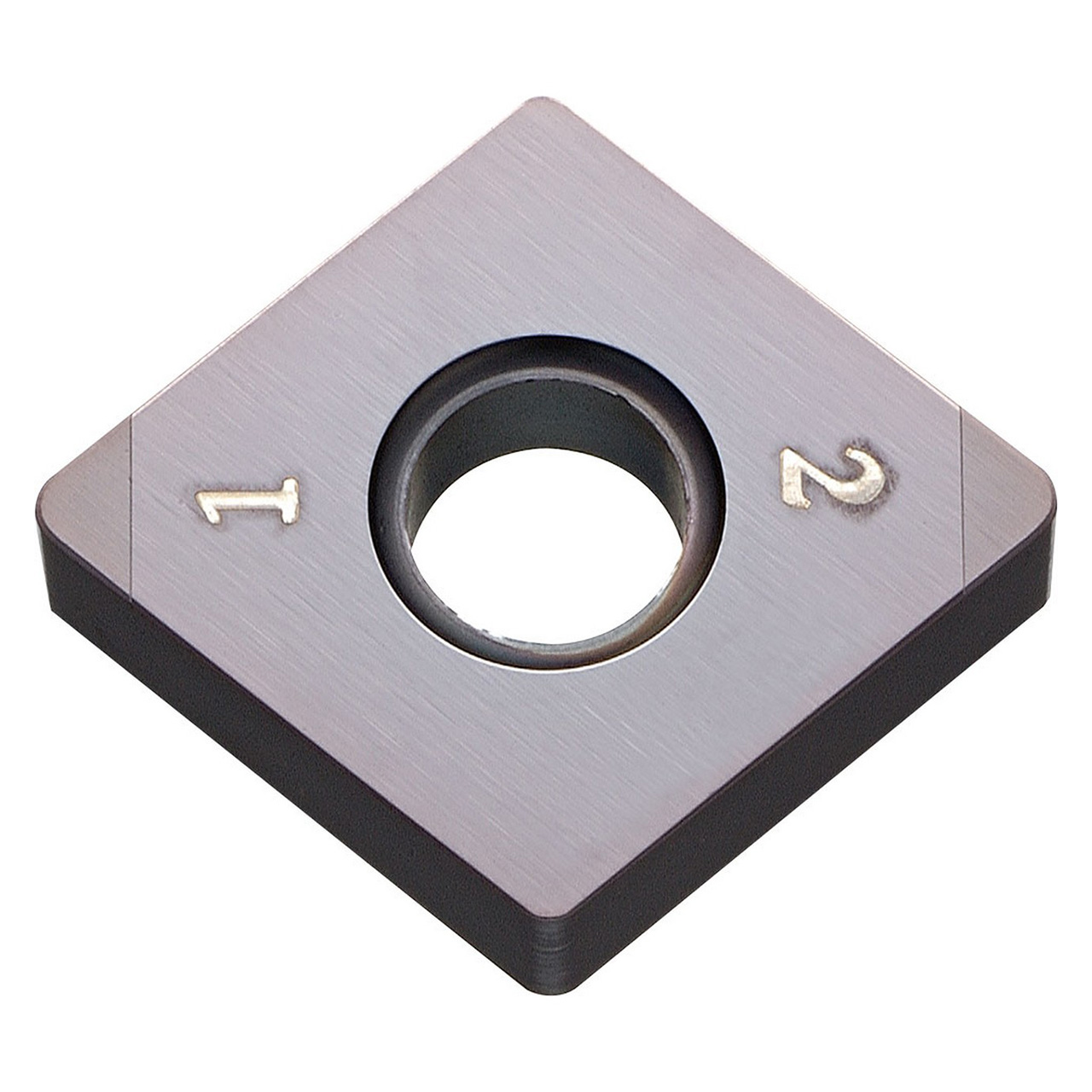

Features:
- Insert for external turning, facing, boring, internal facing
- Multi-edge with 2 cutting edges
- Honeycomb structure CBN composite material consisting of wear resistant CBN (core) and tough CBN (shell)
- Heat-resistant MEGACOAT on tough honeycomb structure CBN
- Application: Stable machining of hardened steel at interrupted machining
Product Specifications
| EDP Number | TBA01458 |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 3/64" |
| Corner Radius (mm) | 1.20mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | Boring | External Turning | Facing | Internal Facing |
| Coating Process | PVD |
| Cutting Range | Roughing |
| Hand | Neutral |
| Insert Grade | KBN35M |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 80 Degree Diamond |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 433 |
| Material | Honeycomb CBN |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Hardened Materials (H) |
| Usage Classification | Heavy Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
CNGA
Insert Size:
433
Material:
Honeycomb CBN
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
1.20mm
Manufacturer's Grade:
KBN35M
