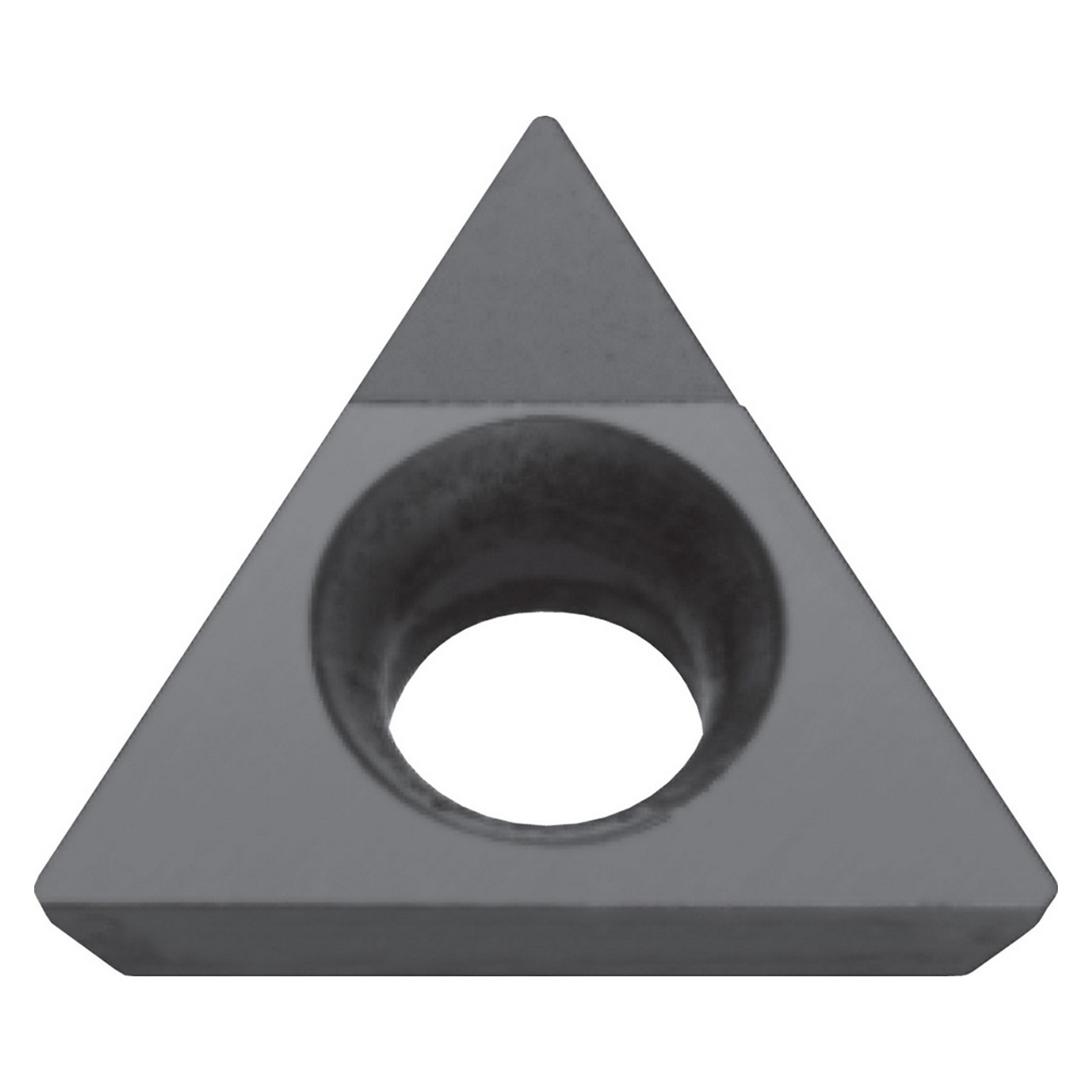

Kyocera Precision Tools TBE00076 | TPGB15151 KPD010 3/16" Circle Diameter x 3/32" Thickness Uncoated PCD Indexable Turning Insert

$195.38 $142.63
(You save $52.75)
Brand:
Kyocera Precision Tools
Insert Style:
TPGB
Insert Size:
15151
Material:
PCD;Inscribed Circle (Inch)=3/16"""
Inscribed Circle (Decimal Inch):
0.1874"
Inscribed Circle (mm):
4.76mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
KPD010
interval quantity:
1
SKU:
23224654
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, boring, internal facing, copying, back boring
  • 1 Cutting edge
  • Good wear resistance and toughness, good grindability
  • Application: General purpose, high speed cutting of aluminum alloys, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics

Product Specifications
EDP NumberTBE00076
Inscribed Circle (Inch)3/16"
Inscribed Circle (mm)4.76mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBack Boring | Boring | Copying | External Turning | Internal Facing
Coating ProcessUncoated
Cutting RangeFinishing Medium
HandNeutral
Insert GradeKPD010
Insert Holding MethodScrew or Clamp
Insert Shape60 Degree Triangle
Insert Included Angle ( Degree)60 Degree
Insert Size15151
MaterialPCD
Number of Cutting Edges1
Primary Workpiece MaterialNon-Ferrous Materials (N) | Titanium Alloy (S)
Usage ClassificationContinuous
