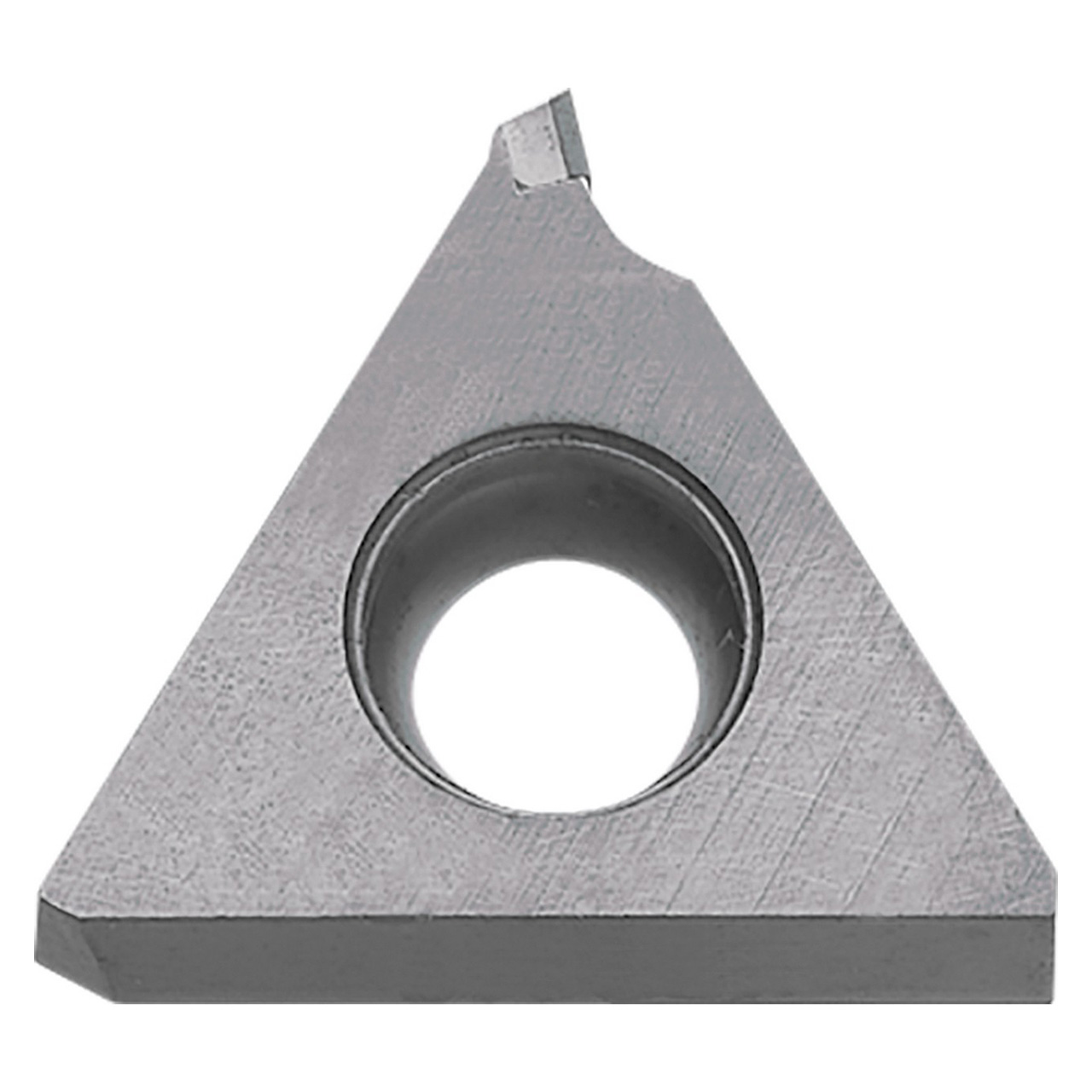

Features:
- Insert for external grooving, internal grooving
- 1-Edge
- 1 Cutting edge
- Super Micro-Grain PCD features Cutting edge strength, wear resistance, fracture resistance, good edge-sharpening performance and long, stable tool life
- Application: High speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
Product Specifications
| Tool Number | TBR21020 |
| Max Depth of Cut (Decimal Inch) | 0.0787" |
| Max Depth of Cut (mm) | 2.00mm |
| Cutting Width (Decimal Inch) | 0.0591" |
| Cutting Width (mm) | 1.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0591" |
| Cutting Width Minimum (mm) | 1.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0591" |
| Cutting Width Maximum (mm) | 1.50mm |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | External Grooving | Internal Grooving |
| Coating Process | Uncoated |
| Cutting Range | Finishing |
| Hand | Right Hand |
| Insert Holding Method | Screw or Clamp |
| Insert Grade | KPD001 |
| Insert Size | 32 |
| Material | PCD |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
32
Material:
PCD;Cutting Width (Decimal Inch)=0.0591"""
Cutting Width (mm):
1.50mm
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2.00mm
Manufacturer's Grade:
KPD001
Finish/Coating:
Uncoated
