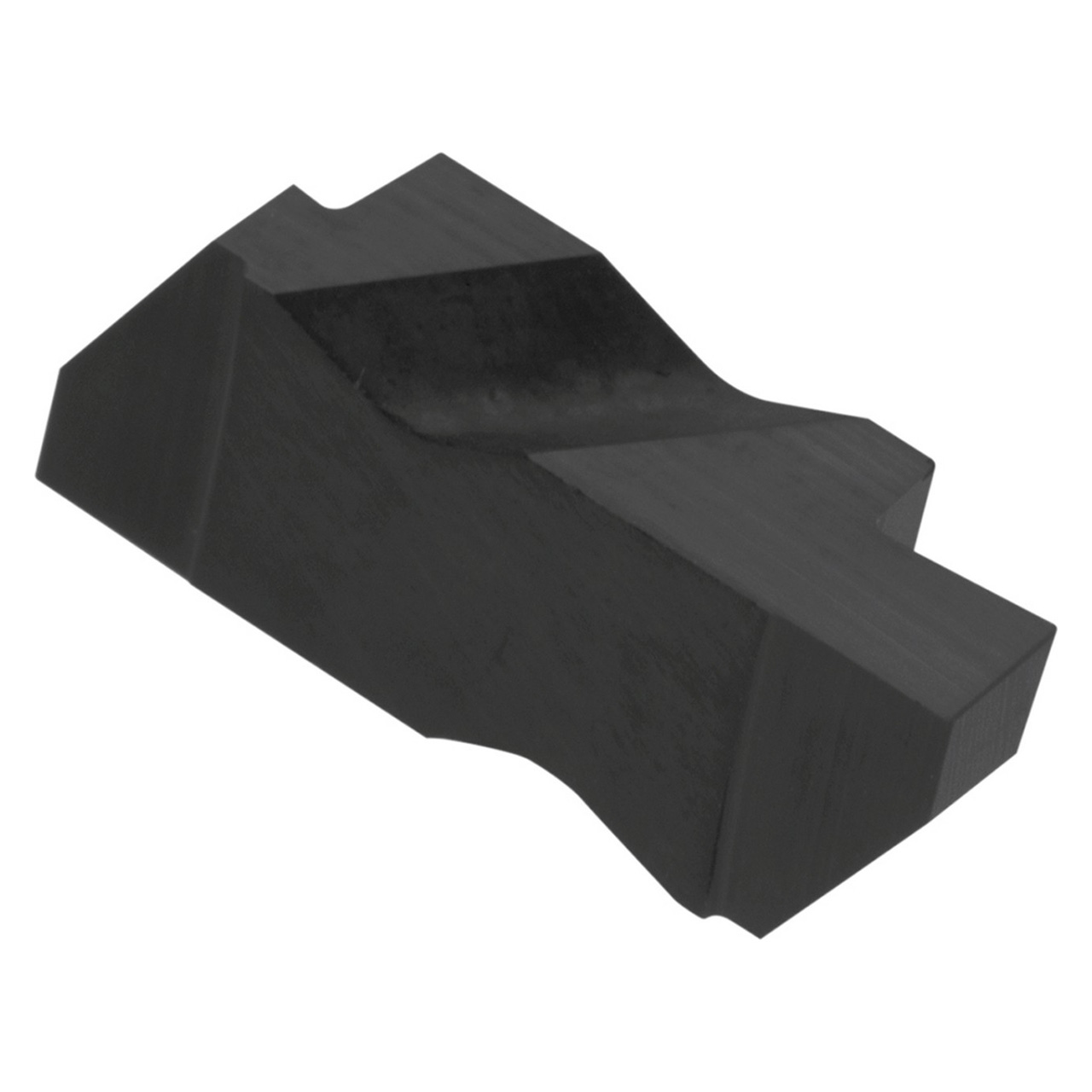

Features:
- Insert for external grooving, internal large diameter shallow grooving
- 2 Cutting edges
- Aluminum oxide and titanium carbide ceramic (Al2O3+TiC)
- Application: Semi-roughing to finishing of steel, cast iron, and hard materials
Product Specifications
| Tool Number | TCR89107 |
| Max Depth of Cut (Decimal Inch) | 0.1102" |
| Max Depth of Cut (mm) | 2.80mm |
| Cutting Width (Decimal Inch) | 0.0618" |
| Cutting Width (mm) | 1.57mm |
| Cutting Width Minimum (Decimal Inch) | 0.0618" |
| Cutting Width Minimum (mm) | 1.57mm |
| Cutting Width Maximum (Decimal Inch) | 0.0618" |
| Cutting Width Maximum (mm) | 1.57mm |
| Insert Length (Decimal Inch) | 0.5402" |
| Insert Length (mm) | 13.72mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 7/32" |
| Thickness (mm) | 5.56mm |
| Application | External Grooving | Internal Large Diameter Shallow Grooving |
| Coating Process | Uncoated |
| Cutting Range | Finishing |
| Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Grade | A65 |
| Insert Size | 2062 |
| Material | Ceramic |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Cast Iron (K) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
KCG
Insert Size:
2062
Material:
Ceramic;Cutting Width (Decimal Inch)=0.0618"""
Cutting Width (mm):
1.57mm
Maximum Depth of Cut (Decimal Inch):
0.1102"
Maximum Depth of Cut (mm):
2.80mm
Manufacturer's Grade:
A65
Finish/Coating:
Uncoated
