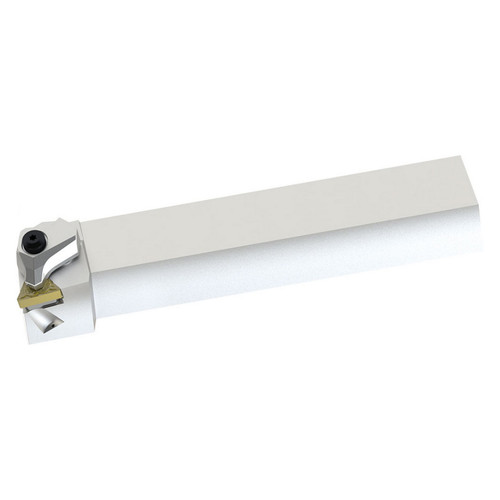

Features:
- Left-Hand toolholder
- Application: External turning, facing
- Wedge lock insert holding design
- Compatible with Left-Hand WNMG43, WNGG43, WNMM43, WNGA43 style inserts
- Rigid clamping for heavy machining
Product Specifications
| EDP Number | THC00563 |
| Shank Width (Decimal Inch) | 0.4724" |
| Shank Width (mm) | 20.00mm |
| Shank Height (Decimal Inch) | 0.7874" |
| Shank Height (mm) | 20.00mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Application | External Turning | Facing |
| Hand | Left Hand |
| Insert Holding Method | Wedge Lock |
| Insert Shape | 80 Degree Trigon |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
Toolholder Style:
WWLN
Rake:
Negative;Series=WCTH
Lead Angle:
95°
Shank Width (Decimal Inch):
0.7874"
Shank Width (mm):
20.00mm
Shank Height (Decimal Inch):
0.7874"
Shank Height (mm):
20.00mm
