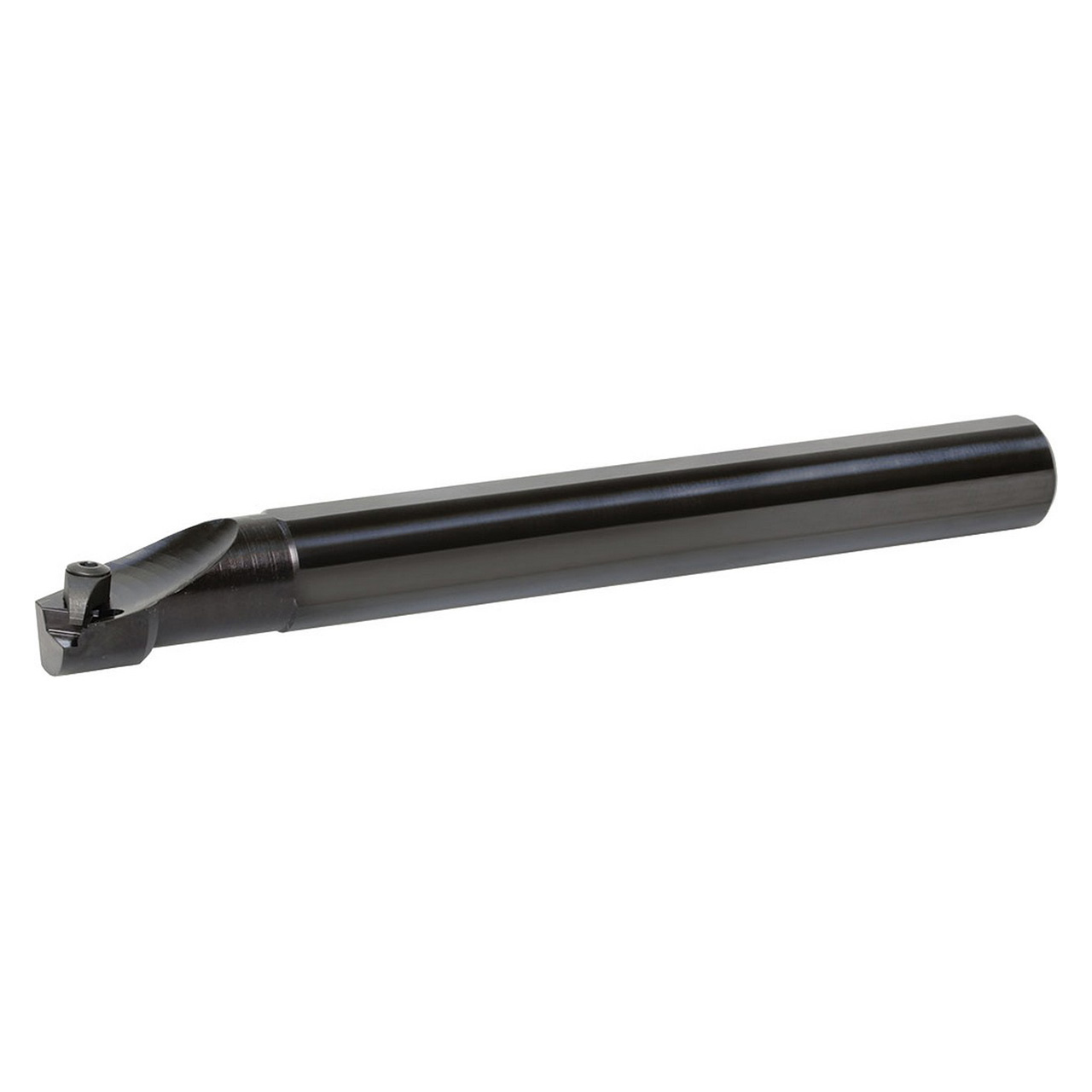

Kyocera Precision Tools THC03682 | S25XCTUPR1634 0.9843" Diameter Right-Hand Steel Indexable Boring Bar

$180.23
Brand:
Kyocera Precision Tools
Toolholder Style:
S...CTUP
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=1.3386"""
Minimum Bore Diameter (mm):
34.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Through Coolant:
No
SKU:
23228437
Weight:
1.82 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • ~5 (Axial), -0 (Radial) Rake angle general purpose boring bar
  • Great for boring applications
  • Compatible with Left-Hand TPMR32, TPGR32, TPM32, TPG32 inserts

Product Specifications
EDP NumberTHC03682
Connection Diameter (Decimal Inch)0.9843"
Connection Diameter (mm)25.00mm
Minimum Bore Diameter (Decimal Inch)1.3386"
Minimum Bore Diameter (mm)34.00mm
Shank Height (Decimal Inch)0.9055"
Shank Height (mm)23.00mm
Tool Entering Angle ( Degree)93 Degree
ApplicationBoring
Bar TypeSteel Shank
HandRight Hand
Insert Holding MethodTop Clamp
Insert Shape60 Degree Triangle
MaterialSteel
RakePositive
