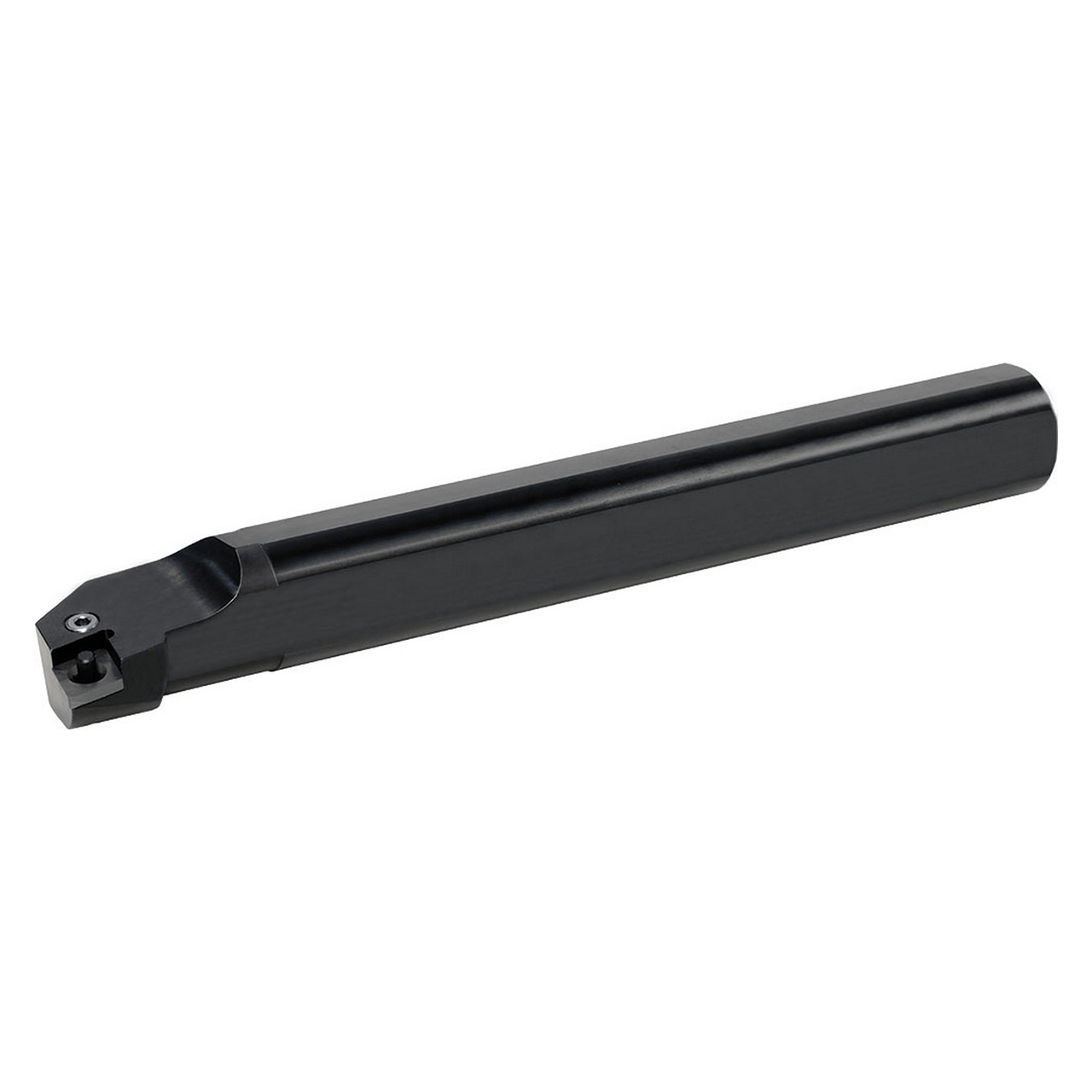

Features:
- ~6 (Axial), -10 (Radial) Rake angle general purpose boring bar
- Great for boring, internal facing applications
- Compatible with Left-Hand CNMG43, CNMM43, CNGG43, CNMA43, CNGA43 inserts
Product Specifications
| EDP Number | THC03714 |
| Connection Diameter (Decimal Inch) | 1.5748" |
| Connection Diameter (mm) | 40.00mm |
| Minimum Bore Diameter (Decimal Inch) | 1.9685" |
| Minimum Bore Diameter (mm) | 50.00mm |
| Shank Height (Decimal Inch) | 1.4567" |
| Shank Height (mm) | 37.00mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Application | Boring | Internal Facing |
| Bar Type | Steel Shank |
| Hand | Right Hand |
| Insert Holding Method | Lever Lock / Lock Pin |
| Insert Shape | 80 Degree Diamond |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
S...PCLN
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=1.9685"""
Minimum Bore Diameter (mm):
50.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
1.5748"
Shank Diameter (mm):
40.00mm
Through Coolant:
No
