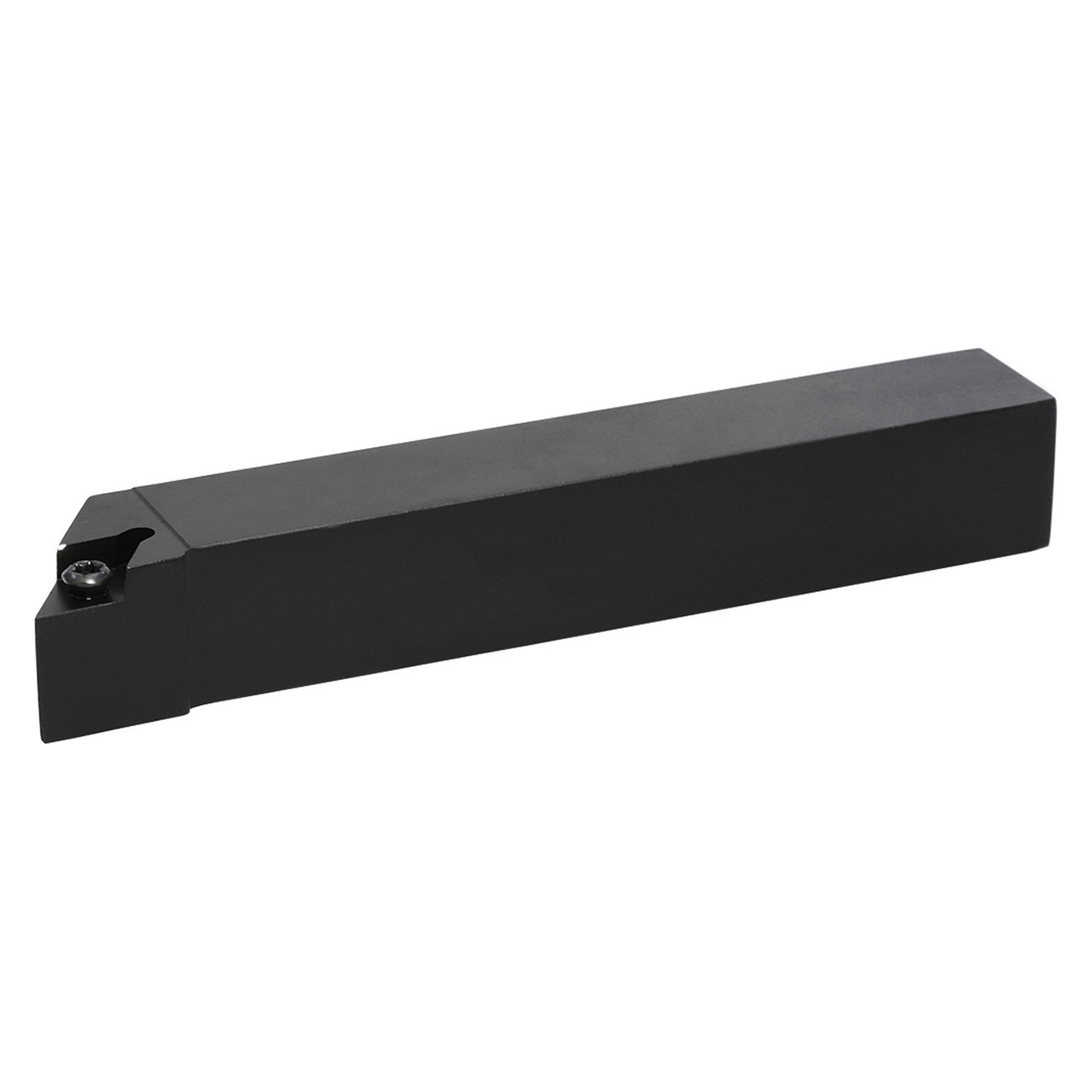

Kyocera Precision Tools THC05134 | SDJCR1620JX11F05 0.4961" Usable Length x 0.6299" Shank Height Steel Indexable Turning Toolholder

$124.79
Brand:
Kyocera Precision Tools
Hand of Holder:
Right-Hand
Toolholder Style:
SDJC-JX-F
Rake:
Positive;Series=SSTH
Lead Angle:
93°
Shank Width (Decimal Inch):
0.7874"
Shank Width (mm):
20.00mm
Shank Height (Decimal Inch):
0.6299"
Shank Height (mm):
16.00mm
SKU:
23228867
Weight:
0.74 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Goose-neck Right-Hand toolholder
  • Application: swiss, external turning, copying
  • Screw clamp insert holding design
  • Compatible with Right-Hand DCGT325, DCMX325, DCMT325, DCET325, DCGW325, DCMW325 style inserts
  • Simple mechanism with fewer parts for finishing to medium machining

Product Specifications
EDP NumberTHC05134
Shank Width (mm)20.00mm
Shank Height (Decimal Inch)0.6299"
Shank Height (mm)16.00mm
Tool Entering Angle ( Degree)93 Degree
Usable Length (Decimal Inch)0.4961"
Usable Length (mm)12.60mm
ApplicationCopying | External Turning | Small Parts Machining
HandRight Hand
Insert Holding MethodScrew
Insert Shape55 Degree Diamond
MaterialSteel
RakePositive
