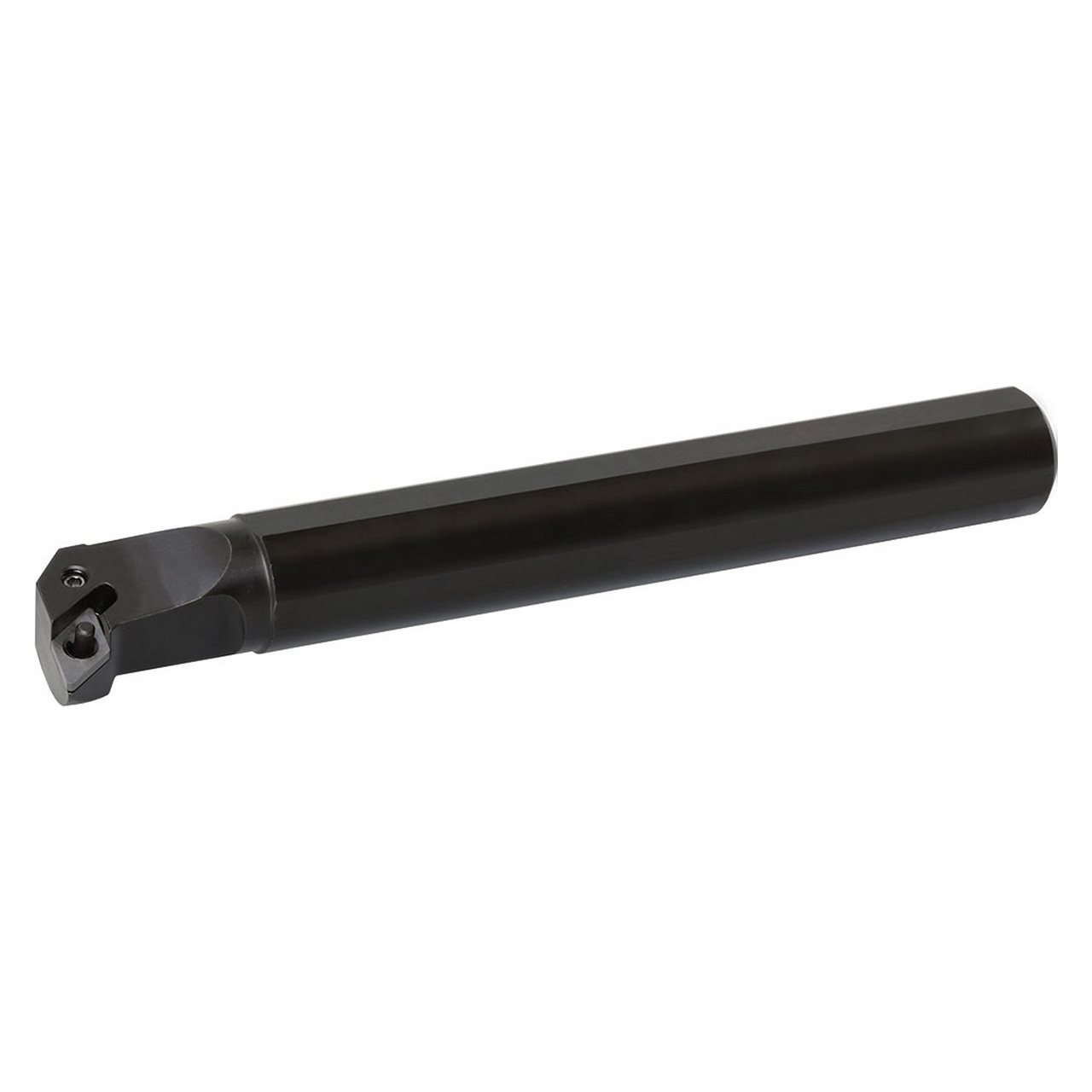

Features:
- ~6 (Axial), -13 (Radial) Rake angle general purpose boring bar
- Great for copying applications
- Compatible with Left-Hand DNMG43, DNMX43, DNGG43, DNGA43, DNMM43 inserts
Product Specifications
| EDP Number | THC08086 |
| Connection Diameter (Decimal Inch) | 1.2598" |
| Connection Diameter (mm) | 32.00mm |
| Minimum Bore Diameter (Decimal Inch) | 1.7323" |
| Minimum Bore Diameter (mm) | 44.00mm |
| Shank Height (Decimal Inch) | 1.2205" |
| Shank Height (mm) | 31.00mm |
| Tool Entering Angle ( Degree) | 107.5 Degree |
| Usable Length (Decimal Inch) | 1.9685" |
| Usable Length (mm) | 50.00mm |
| Application | Copying |
| Bar Type | Steel Shank |
| Hand | Right Hand |
| Insert Holding Method | Lever Lock / Lock Pin |
| Insert Shape | 55 Degree Diamond |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
S...PDQN15
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=1.7323"""
Minimum Bore Diameter (mm):
44.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Through Coolant:
No
