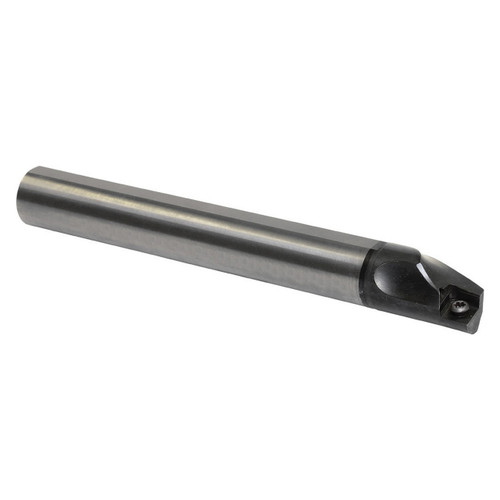

Features:
- ~5 (Axial), -10 (Radial) Rake angle general purpose boring bar
- Great for boring, internal facing applications
- Compatible with Right-Hand TPGT1815, TPMT1815, TPMX1815, TPEH1815, TPGH1815, TPGB1815, TPMH1815 inserts
Product Specifications
| EDP Number | THC08353 |
| Connection Diameter (Decimal Inch) | 0.3937" |
| Connection Diameter (mm) | 10.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.4331" |
| Minimum Bore Diameter (mm) | 11.00mm |
| Shank Height (Decimal Inch) | 0.3543" |
| Shank Height (mm) | 9.00mm |
| Tool Entering Angle ( Degree) | 110 Degree |
| Application | Boring | Internal Facing |
| Bar Type | Carbide Shank |
| Hand | Left Hand |
| Insert Holding Method | Screw |
| Insert Shape | 60 Degree Triangle |
| Material | Steel/Carbide |
| Rake | Positive |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
C...STXP
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=0.4331"""
Minimum Bore Diameter (mm):
11.00mm
Hand of Holder:
Left-Hand
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Through Coolant:
No
