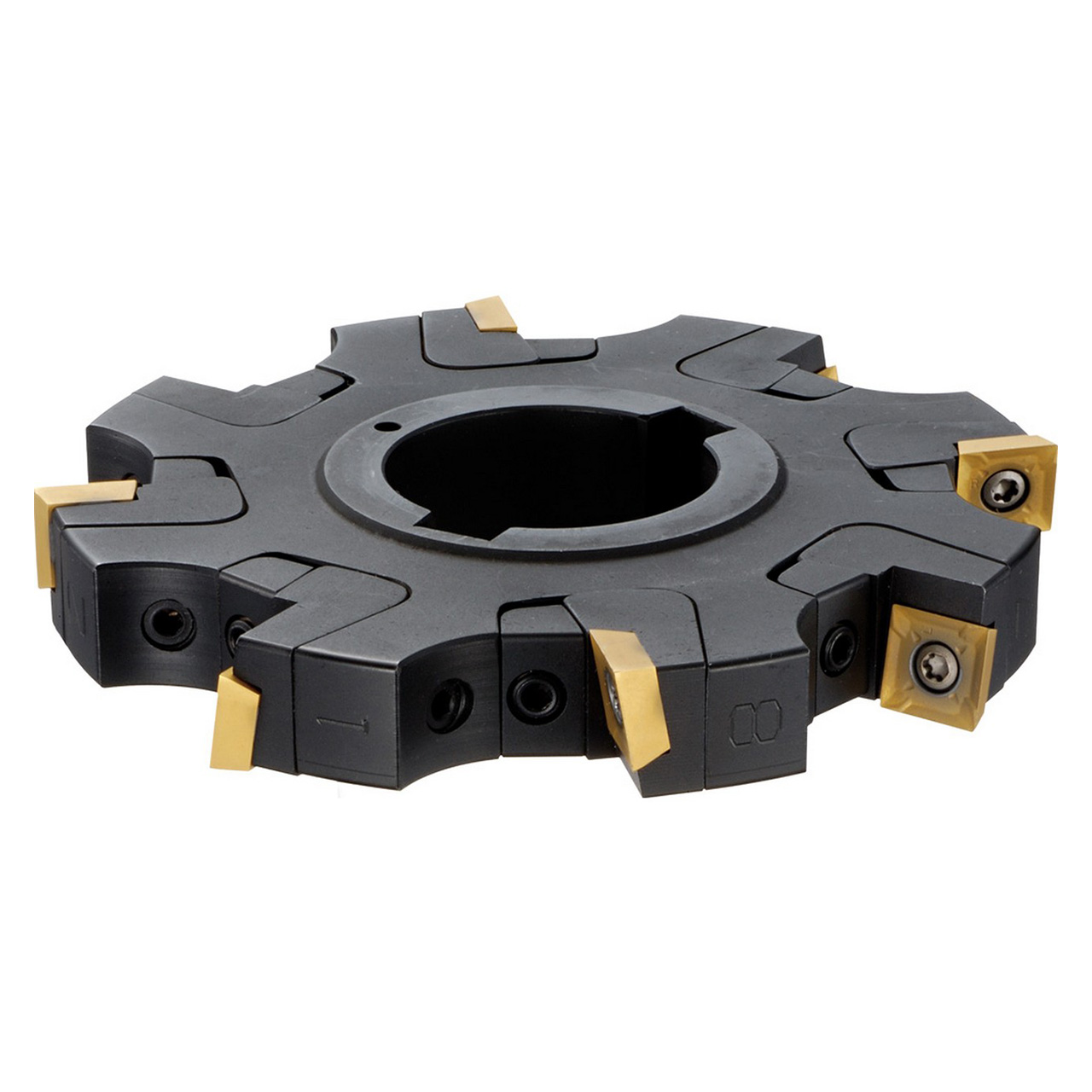

Kyocera Precision Tools THC10601 | MSTC500AN70981312 5.0000" Diameter x 1.3307" Maximum Depth of Cut Steel Indexable Slot Mill

$1,986.47
Brand:
Kyocera Precision Tools
Cutting Width (Inch):
13/16"
Cutting Width (Decimal Inch):
0.8130"
Cutting Width (mm):
20.65mm
Maximum Depth of Cut (Inch):
1-21/64"
Maximum Depth of Cut (Decimal Inch):
1.3307"
Maximum Depth of Cut (mm):
33.80mm
Cutter Diameter (Inch):
5"
Cutter Diameter (Decimal Inch):
5.0000"
Cutter Diameter (mm):
127.00mm
Hole Diameter (Inch):
1-1/2"
Hole Diameter (Decimal Inch):
1.5000"
Hole Diameter (mm):
38.10mm
Toolholder Style:
MSTC
Series:
MSTC
SKU:
23229503
Weight:
3.90 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Lay-down type inserts/fully adjustable slot width
  • Smooth slotting width adjustment is possible due to unique cam style adjustment mechanism
  • Four-sided inserts are cost-effective
  • Wide range of corner radii
  • Numerous insert geometries and grades, are for various types of workpiece machining

Product Specifications
EDP NumberTHC10601
Shank Width (Decimal Inch)0.6299"
Max Depth of Cut (Decimal Inch)1.3307"
Max Depth of Cut (mm)33.80mm
Cutting Width (Decimal Inch)0.7087 - 0.8130"
Cutting Width (mm)18.00 - 20.65mm
Cutting Width Minimum (Decimal Inch)0.7087"
Cutting Width Minimum (mm)18.00mm
Cutting Width Maximum (Decimal Inch)0.8130"
Cutting Width Maximum (mm)20.65mm
Cutting Diameter (Decimal Inch)5.0000"
Cutting Diameter (mm)127.00mm
Cutting Diameter Minimum (Decimal Inch)5.0000"
Cutting Diameter Minimum (mm)127.00mm
Cutting Diameter Maximum (Decimal Inch)5.0000"
Cutting Diameter Maximum (mm)127.00mm
Cutting Diameter Maximum (mm)1.5000"
Connection Bore Diameter (mm)38.10mm
Contact Surface Diameter Machine Side (Decimal Inch)2.2500"
Contact Surface Diameter Machine Side (mm)57.15mm
ApplicationShouldering | Slotting
HandNeutral
Insert Holding MethodScrew
MaterialSteel
